Compute Module hardware

A Raspberry Pi Compute Module (CM) is a compact version of a standard Raspberry Pi single-board computer (SBC) designed primarily for embedded and industrial applications. A Compute Module contains the core components of a Raspberry Pi but without the standard connectors like HDMI, USB, or Ethernet.

A Raspberry Pi Compute Module IO Board (CMIO) provides the physical connectors, peripheral interfaces, and expansion options necessary for accessing and expanding a Compute Module’s functionality. A Compute Module IO Board can be used as a standalone product, allowing for rapid prototyping and embedded systems development, or as a reference design for your own carrier (IO) board. In either case, you can selectively make use of only the connectors that your application requires.

This page:

  • Summarises the available Raspberry Pi Compute Module and IO Board models, including information about their compatibility and key features.

  • Describes the accessories available for Compute Module 5 (CM5) and its IO Board (CM5IO).

  • Explains how to flash and boot Raspberry Pi Compute Modules.

  • Explains how to configure the EEPROM bootloader of a Compute Module.

  • Explains how to wire and enable peripherals like cameras and displays using Device Tree and overlays.

  • Provides links to datasheets, schematics, and design resources.

Compute Modules

Edit this on GitHub

Raspberry Pi Compute Modules are system-on-module (SoM) variants of the flagship Raspberry Pi single-board computers (SBC). They’re designed for industrial and commercial applications, such as digital signage, thin clients, and process automation. Many developers and system designers choose Compute Modules over flagship Raspberry Pi models for their compact design, flexibility, and support for on-board eMMC storage.

Memory, storage, and wireless variants

Raspberry Pi Compute Modules are available in several variants, differing in memory, embedded Multi-Media Card (eMMC) flash storage capacity (soldered onto the board), and wireless connectivity (Wi-Fi and Bluetooth).

  • Memory. Compute Modules 1, 3, and 3+ offer a fixed amount of RAM. Compute Modules 4, 4S, and 5 offer different amounts of RAM; for details about the available options, see the dedicated sections for each Compute Module model on this page.

  • Storage. Compute Modules 3, 3+, 4, 4S, and 5 offer different storage options, with later models offering more options and larger sizes than earlier models. Compute Module 1 offers a fixed 4 GB of storage. Storage is provided by eMMC flash memory, which provides persistent storage with low power consumption and built-in features that improve reliability. Variants with no on-board storage are referred to with the suffix Lite or L, for example, "CM5Lite" or "CM3L".

  • Wireless. Compute Modules 4 and 5 offer optional Wi-Fi and Bluetooth.

Models

The following table summarises Raspberry Pi Compute Modules in reverse chronological order, listing their SoC, GPU, CPU, and form factor for quick reference. For more information about each of these models, including memory and storage options, see the following dedicated sections on this page.

Model Based on SoC GPU CPU Form factor

CM5 (2024)

Raspberry Pi 5

Broadcom BCM2712

VideoCore VII

4 × Cortex-A76 at 2.4 GHz

Dual 100-pin connectors

CM4S (2022)

Raspberry Pi 4 Model B (in CM3 form factor)

Broadcom BCM2711

VideoCore VI

4 × Cortex-A72 at 1.5 GHz

DDR2 SODIMM

CM4 (2020)

Raspberry Pi 4 Model B

Broadcom BCM2711

VideoCore VI

4 × Cortex-A72 at 1.5 GHz

Dual 100-pin connectors

CM3+ (2019)

Raspberry Pi 3 Model B+

Broadcom BCM2837B0

VideoCore IV

4 × Cortex-A53 at 1.2 GHz

DDR2 SODIMM

CM3 (2017; discontinued October 2025)

Raspberry Pi 3 Model B

Broadcom BCM2837

VideoCore IV

4 × Cortex-A53 at 1.2 GHz

DDR2 SODIMM

CM1 (2014)

Raspberry Pi Model B

Broadcom BCM2835

VideoCore IV

1 × ARM1176JZF-S at 700 MHz

DDR2 SODIMM

Compute Module 5

Compute Module 5
Compute Module 5

Compute Module 5 (CM5) combines the core components of Raspberry Pi 5 with optional flash storage. Key features include:

  • Processor. Broadcom BCM2712.

  • Memory options. 2 GB, 4 GB, 8 GB, or 16 GB of RAM.

  • Storage options. 0 GB (CM5Lite), 16 GB, 32 GB, or 64 GB of eMMC flash memory.

  • Form factor. Two 100-pin high-density connectors for connecting to the companion carrier board.

CM5 uses the same form factor as CM4 and provides input/output (I/O) interfaces beyond those available on standard Raspberry Pi boards, offering expanded options for more complex systems and designs.

Compute Module 4S

Compute Module 4S
Compute Module 4S

Compute Module 4S (CM4S) combines the core components of Raspberry Pi 4 with optional flash storage. Key features include:

  • Processor. Broadcom BCM2711.

  • Memory options. 1 GB, 2 GB, 4 GB, or 8 GB of RAM.

  • Storage options. 0 GB (CM4SLite), 8 GB, 16 GB, or 32 GB of eMMC flash memory.

  • Form factor. Standard DDR2 SODIMM module.

Unlike CM4, CM4S retains the DDR2 SODIMM form factor used in CM1, CM3, and CM3+.

Compute Module 4

Compute Module 4
Compute Module 4

Compute Module 4 (CM4) combines the core components of Raspberry Pi 4 with optional flash storage. Key features include:

  • Processor. Broadcom BCM2711.

  • Memory options. 1 GB, 2 GB, 4 GB, or 8 GB of RAM.

  • Storage options. 0 GB (CM4Lite), 8 GB, 16 GB, or 32 GB of eMMC flash memory.

  • Form factor. Two 100-pin high-density connectors for connecting to the companion carrier board.

  • Temperature range options. Operating temperature of -20°C to +85°C for standard variants or -40°C to +85°C for wider applications.

Unlike earlier modules (CM1, CM3, CM3+), CM4 moved away from the DDR2 SODIMM form factor to a dual 100-pin high-density connector layout, which results in a smaller physical footprint. This redesign supports the following additional features:

  • Dual HDMI connectors

  • PCIe support

  • Ethernet connector

Compute Module 3+

Compute Module 3+
Compute Module 3+

Compute Module 3+ (CM3+) combines the core components of Raspberry Pi 3 Model B+ with optional flash storage. Key features include:

  • Processor. Broadcom BCM2837B0.

  • Memory. 1 GB of RAM.

  • Storage options. 0 GB (CM3+Lite) or 8 GB, 16 GB, or 32 GB of eMMC flash memory.

  • Form factor. Standard DDR2 SODIMM module.

Compute Module 3

Compute Module 3
Compute Module 3
Important
 Raspberry Pi Compute Module 3 (CM3) and Compute Module 3 Lite (CM3Lite) have reached End-of-Life (EoL) due to the discontinuation of the core SoC used in these products. The official EoL date was 16 October 2025. The closest equivalent to CM3 is Raspberry Pi Compute Module 3+, which offers the same mechanical footprint, improved thermal design, and a BCM2837B0 processor, and so is recommended for existing designs. For new designs requiring the SODIMM form factor, we recommend Compute Module 4S. For all other new designs, we recommend Compute Module 4 or Compute Module 5. For more information, see the official Obsolescence Notice.

Compute Module 3 (CM3) combines the core components of Raspberry Pi 3 with an optional 4 GB of flash storage. Key features include:

  • Processor. Broadcom BCM2837.

  • Memory. 1 GB of RAM.

  • Storage options. 0 GB (CM3Lite) or 4 GB of eMMC flash memory.

  • Form factor. Standard DDR2 SODIMM module.

Compute Module 1

Compute Module 1
Compute Module 1

Compute Module 1 (CM1) combines the core components of Raspberry Pi Model B with 4 GB of flash storage. Key features include:

  • Processor. Broadcom BCM2835.

  • Memory. 512 MB of RAM.

  • Storage. 4 GB of eMMC flash memory.

  • Form factor. Standard DDR2 SODIMM module.

IO Boards

A Raspberry Pi Compute Module IO Board is the companion carrier board that provides the necessary connectors to interface with various input/output (I/O) peripherals on your Compute Module. Raspberry Pi Compute Module IO Boards provide the following functionality:

  • Supply power to the Compute Module.

  • Connect general-purpose input/output (GPIO) pins to standard pin headers so that you can attach sensors or electronics.

  • Make camera and display interfaces available through flat flexible cable (FFC) connectors.

  • Make HDMI signals available through HDMI connectors.

  • Make USB interfaces available through standard USB connectors for peripheral devices.

  • Provide LEDs that indicate power and activity status.

  • Enable eMMC programming over USB for flashing the module’s on-board storage.

  • On CM4IO and CM5IO, expose PCIe through connectors so that you can attach storage or peripheral devices like SSDs or network adapters.

Raspberry Pi IO Boards are general-purpose boards designed for development, testing, and prototyping Compute Modules. For production use, you might design a smaller, custom carrier board that includes only the connectors you need for your use case.

IO Boards and compatibility

Not all IO Boards work with all Compute Module models. The following table summarises Raspberry Pi Compute Module IO Boards in reverse chronological order, listing their compatible Compute Modules (which include Lite versions), power input, and size. For more information about each of these boards, including available interfaces, see the following dedicated sections on this page.

IO Board Compatible CM Power input Size

Compute Module 5 IO Board (CM5IO) (2024)

CM5; CM4 with reduced functionality

5 V through USB Type-C

160 mm × 90 mm

Compute Module 4 IO Board (CM4IO) (2020)

CM4; CM5 with reduced functionality

5 V through the GPIO header or 12 V through the DC barrel jack

160 mm × 90 mm

Compute Module IO Board version 3 (CMIO3) (2017)

CM1, CM3, CM3+, and CM4S

5 V through GPIO or a micro USB connector

85 mm × 105 mm

Compute Module IO Board version 1 (CMIO; CMIO1) (2014)

CM1

5 V through GPIO or a micro USB connector.

85 mm × 105 mm

Compute Module 5 IO Board

Compute Module 5 IO Board
Compute Module 5 IO Board

The Compute Module 5 IO Board (CM5IO) provides the following:

  • Power and control connectors.

    • USB-C power using the same standard as Raspberry Pi 5: 5 V at 5 A (25 W) or 5 V at 3 A (15 W) with a 600 mA peripheral limit.

    • A power button for CM5.

    • Real-time clock (RTC) battery socket.

  • Video and display connectors.

    • Two HDMI connectors.

    • Two MIPI DSI/CSI-2 combined display/camera FPC connectors (22-pin, 0.5 mm pitch cable).

  • Networking and connectivity connectors.

    • Two USB 3.0 (Type-A) connectors for keyboards, storage, or peripherals.

    • A USB 2.0 (Type-C) connector for flashing CM5 or additional peripherals.

    • A Gigabit Ethernet RJ45 with PoE support.

  • Expansion and storage options.

    • A M.2 M key PCIe socket compatible with the 2230, 2242, 2260, and 2280 form factors.

    • A microSD card slot (only for use with CM5Lite, which has no eMMC; other variants ignore the slot).

    • HAT footprint with 40-pin GPIO connector.

    • PoE header.

  • Configuration options.

    • Jumpers to disable features such as eMMC boot, EEPROM write, and wireless connectivity.

    • Selectable 1.8 V or 3.3 V GPIO voltage.

  • Fan connector. A four-pin JST-SH PWM fan connector.

Compute Module 4 IO Board

Compute Module 4 IO Board
Compute Module 4 IO Board

The Compute Module 4 IO Board (CM4IO) provides the following:

  • Power and control connectors.

    • 5 V through the GPIO header or 12 V input through barrel jack; supports up to 26 V if PCIe is unused.

    • Real-time clock (RTC) battery socket.

  • Video and display connectors.

    • Two HDMI connectors.

    • Two MIPI DSI display FPC connectors (22-pin, 0.5 mm pitch cable).

    • Two MIPI CSI-2 camera FPC connectors (22-pin, 0.5 mm pitch cable).

  • Networking and connectivity connectors.

    • Two USB 2.0 connectors.

    • A micro USB upstream port.

    • A Gigabit Ethernet RJ45 with PoE support.

  • Expansion and storage options.

    • PCIe Gen 2 socket.

    • A microSD card slot (only for use with CM4Lite, which has no eMMC; other variants ignore the slot).

    • HAT footprint with 40-pin GPIO connector.

    • PoE header.

  • Configuration options.

    • Jumpers to disable features such as eMMC boot, EEPROM write, and wireless connectivity.

    • Selectable 1.8 V or 3.3 V GPIO voltage.

  • Fan connector. Fan connector supporting standard 12 V fans with PWM drive.

Compute Module IO Board (versions 1 and 3)

Compute Module IO Board (version 3)
Compute Module IO Board (version 3)

There are two variants of the Compute Module IO Board:

  • Version 1 (CMIO), compatible only with CM1.

  • Version 3 (CMIO3), compatible with CM1, CM3, CM3+, and CM4S. This version adds a microSD card slot that doesn’t exist on CMIO (version 1).

The Compute Module IO Board (CMIO and CMIO3) provides the following:

  • Power and control connectors. 5 V input through GPIO or a micro USB connector.

  • Video and display connectors.

    • One Full size Type A HDMI.

    • Two MIPI DSI display FPC connectors (22-pin, 0.5 mm pitch cable).

    • Two MIPI CSI-2 camera FPC connectors (22-pin, 0.5 mm pitch cable).

  • Networking and connectivity connectors. One USB 2.0 Type-A connector.

  • Expansion and storage options.

    • 46 GPIO pins.

    • (CMIO3 only) A microSD card slot (only for use with CM3Lite, CM3+Lite and CM4SLite, which have no eMMC).

CM5 and CM5IO accessories

Raspberry Pi offers the following accessories for CM5 and CM5IO:

  • CM5IO Case, an enclosure for a CM5IO (and attached CM5). The case also optionally fits an antenna and cooler.

  • Antenna (CM4 and CM5), a 2.4 GHz and 5 GHz antenna for wireless connectivity through CM4 or CM5.

  • CM5 Cooler, a passive heat sink to dissipate heat from CM5.

CM5IO Case

Compute Module 5 IO Board Case
Compute Module 5 IO Board Case (version 2)

The Compute Module 5 IO Board (CM5IO) Case is a two-piece metal enclosure that, when assembled, provides physical protection for CM5IO with an attached CM5.

The following features apply to the most recent iteration of the CM5IO Case (version 2):

  • Cut-outs for externally facing connectors and LEDs.

  • A pre-installed, controllable fan that you can remove.

  • An attachment point for a Raspberry Pi Antenna Kit.

  • Space for a CM5 Cooler alongside the pre-installed fan.

  • Space for accessories connected to the IO board, such as an M.2 SSD or PoE+ HAT+.

The original version of the case doesn’t provide the internal space for all the listed items simultaneously. For more information about the different versions, see Case versions.

Case specifications

the port selection on the Compute Module 5 IO Board Case
Compute Module 5 IO Board Case ports

When assembled, the CM5IO Case measures approximately 170 mm × 94 mm × 28 mm. It’s made of sheet metal and weighs approximately 350 g.

For thermal management, the case includes a pre-installed fan that directs airflow over your CM5 and CM5IO components. You can remove or replace the fan depending on your cooling requirements. Depending on the case version, you can also optionally add a CM5 Cooler for improved thermal performance; the original case requires removing the fan first, while the updated version provides space for both the fan and cooler together.

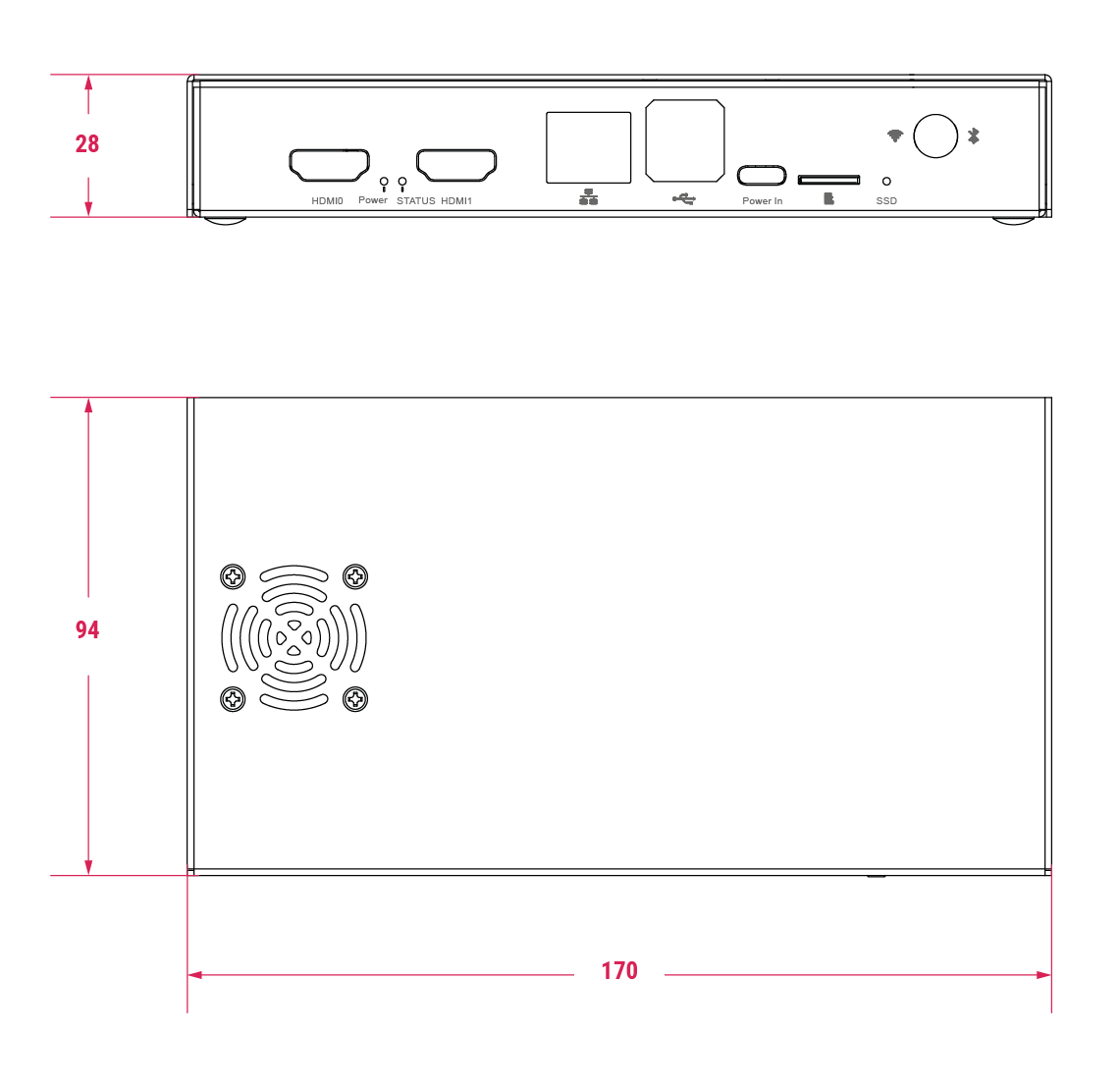

The following image depicts the physical dimensions of the CM5IO case in millimetres (mm). The size of the case is the same for both versions; the only difference is the placement of the fan. For information about the different versions, see Case versions.

CM5IO Case physical specifications
CM5IO Case (version 2) physical specifications

Case versions

The are two iterations of the CM5IO case, differing in the placement of the pre-installed fan: version 1 and version 2.

case versions 1 and 2=

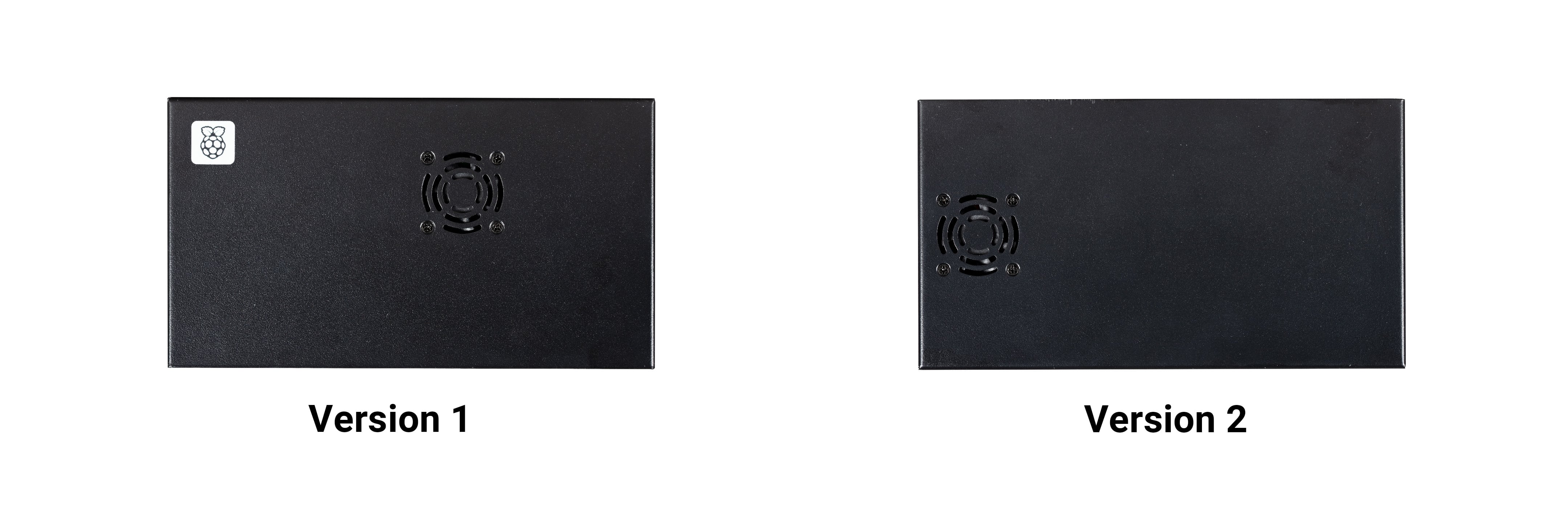

Left: version 1 of the CM5IO Case; right: version 2 of the CM5IO Case

The first version features a fan that’s closer to the long edge of the enclosure. The internal layout and available clearance in this version doesn’t allow for both the fan and the CM5 Cooler to be installed inside the case at the same time. If you want to install the CM5 Cooler into the case, you must remove the fan.

The second version updates the internal layout such that the fan sits closer to the short edge of the enclosure. This revised layout provides sufficient space for both the fan and the CM5 Cooler without modification.

For instructions on mounting a CM5 Cooler onto CM5, which you can then attach to an IO board and install into the CM5IO Case, see Mount a CM5 Cooler.

Case assembly

The following steps provide instructions for assembling the most recent version of the CM5IO Case (version 2). Version 1 doesn’t allow space for both the fan and a CM5 Cooler at the same time without modification. If you have version 1 of the CM5IO Case, you can either remove the fan (described in step 4) or skip step 6 in the following instructions. For information about the different versions, see Case versions.

To mount a CM5IO inside your case:

  1. Attach your CM5 to your CM5IO. Rotate your CM5 90 degrees to the right to align the dual 100-pin connectors on your CM5 with those on your CM5IO and press gently but firmly to attach them. The mounting holes should also align.

  2. Open the case. Unscrew and remove the four screws (two on the left side of the case and two on the right side of the case) using a Phillips screwdriver. Then, separate the top of the case from the base. Keep the screws in a safe place.

  3. Install your CM5IO assembly into the case. Place your CM5IO (with CM5 attached) into the base of the case, aligning it with the four mounting holes near the corners of the board. Ensure all externally facing connectors align with the corresponding cut-outs at the front of the case. Then, secure your CM5IO assembly to the base by screwing four M2.5 screws into the four mounting holes.

  4. Connect or remove the fan.

    • If using the pre-installed fan, plug the fan connector into the four-pin fan socket labelled FAN (J14) on your CM5IO.

    • If you want to remove the fan, unscrew the four corner screws of the fan from the underside of the top of the case.

  5. Optionally, attach an external antenna. If you want to install an antenna, follow the instructions in Connect an antenna through the CM5IO Case.

  6. Optionally, attach a cooler. If you want to install a cooler, follow the instructions in Mount a CM5 Cooler. If you’re also attaching an antenna, attach the antenna’s U.FL connector first for easier access.

  7. Optionally, attach a camera or display. If you’re using a camera or a display, pass the flat cable through one of the slots at the back of the case and connect it to one of the CAM/DISP ports on your CM5IO.

  8. Optionally, install an M.2 SSD. If you want to install an M.2 SSD, insert it into the M.2 slot in the bottom-right corner of the CM5IO and secure it on the opposite end with a mounting screw.

  9. Optionally, install a HAT. If you want to install a HAT, align it with the 40-pin GPIO header and the mounting posts such that the HAT covers the battery slot, then press it firmly into place and secure it with screws.

  10. Close the case. Fold the top of the case back onto the base of the case, aligning the screw holes on the left and right sides of the case, and the power button on the back of the case. Screw the four screws back into place using a Phillips screwdriver, taking care not to overtighten them.

Note
 The SD card slot is a push-push slot. To insert an SD card, push it into the SD card slot with the contacts facing downwards. To remove it, push it inwards towards the slot to release it and then pull it out.

Antenna (CM4 and CM5)

The Raspberry Pi Antenna Kit provides a certified external antenna to boost wireless reception on a CM4 or CM5.

The antenna connected to CM4
Antenna attached to a CM4

Antenna specifications

The antenna supports dual-band Wi-Fi and attaches to the U.FL connector on your CM4 or CM5. The antenna is approximately 108.5 mm at full height and approximately 87.5 mm long when at a 90 degree angle; the SMA to U.FL cable is approximately 205 mm long.

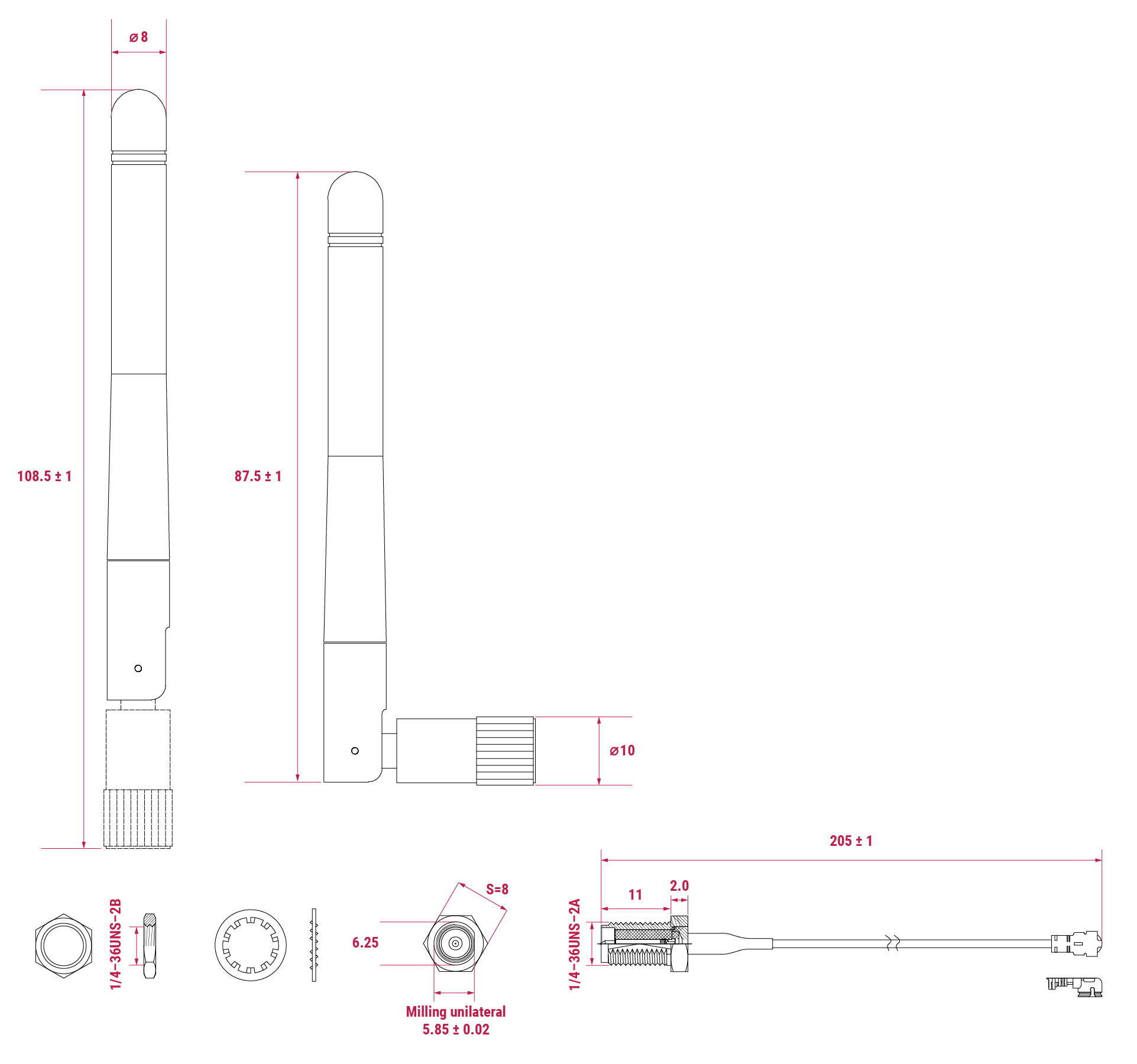

CM4 and CM5 antenna physical specification
CM4 and CM5 antenna physical specifications

Connect an antenna through the CM5IO Case

You can use the antenna with the CM5IO Case. To attach the antenna to your Compute Module through the CM5IO Case, complete the first four steps outlined in Case assembly, and then complete following steps:

  1. Connect the U.FL connector. Connect the U.FL connector on the antenna cable to the U.FL-compatible connector on your Compute Module, next to the top-left mounting hole of your CM5. Do this before attaching a cooler (if using one) because the cooler can make it harder to attach the U.FL connector.

  2. Insert the SMA connector. Remove the rubber plug from the antenna port on the inside of the CM5IO Case. Then, from the inside of the case, push the SMA connector with the (flat side up) into the antenna port so that it extends through and is accessible from the outside.

  3. Fasten the SMA connector into place. Twist the retaining hexagonal nut and washer onto the SMA connector in a clockwise direction until it sits securely in place. Avoid excessive twisting when tightening to prevent damage.

  4. Attach the antenna to the SMA connector. Insert the SMA connector into the antenna port with the antenna facing outward and twist the antenna clockwise to secure it.

  5. Adjust the antenna. Move the antenna into its final position by turning it up to a 90 degree angle.

You can now complete the remaining steps outlined in Case assembly for mounting a CM5IO inside your case.

CM4 and CM5 antenna assembly diagram
CM4 and CM5 antenna assembly diagram

To use the Antenna with your Compute Module, add a dtparam instruction in /boot/firmware/config.txt. Add the following line to the end of the config.txt file: dtparam=ant2

CM5 Cooler

The CM5 Cooler is a passive heat sink that helps dissipate heat from your CM5, improving CPU performance and longevity.

CM5 Cooler
CM5 cooler

Cooler specifications

The CM5 Cooler dimensions are approximately 41 mm × 56 mm × 12.7 mm. The cooler is an aluminium heat sink with a conductive silicone pad on the bottom. Newer versions of the CM5IO Case allow both the cooler and pre-installed fan to be used inside the case at the same time. If you have an older version of the CM5IO Case, you must remove the fan from the case to allow space for the cooler.

CM5 Cooler physical specification
CM5 cooler physical specifications

Mount a CM5 Cooler

To mount the cooler to your CM5:

  1. Remove the protective paper from the silicone pad on the bottom of cooler.

  2. Attach the silicone at the bottom of the cooler to the top of your CM5. Place the cooler on your CM5 such that the cutout in the cooler is above the on-board antenna (the trapezoid-shaped area on the left of a CM5) and the U.FL connector next to it (if it has one).

  3. Optionally, fasten screws in the mounting points found in each corner to secure the cooler. If you omit the screws, the bond between your cooler and your CM5 improves through time and use.

Flash an image to a Compute Module

Edit this on GitHub

Tip
 To flash the same image to multiple Compute Modules, use the Raspberry Pi Secure Boot Provisioner. To customise an OS image to flash onto those devices, use pi-gen.

The Compute Module has an on-board eMMC device connected to the primary SD card interface. This guide explains how to flash (write) an operating system image to the eMMC storage of a single Compute Module.

Lite variants of Compute Modules do not have on-board eMMC. Instead, follow the procedure to flash a storage device for other Raspberry Pi devices at Install an operating system.

Prerequisites

To flash the Compute Module eMMC, you need the following:

  • Another computer, referred to in this guide as the host device. You can use Linux (we recommend Raspberry Pi OS or Ubuntu), Windows 11, or macOS.

  • The Compute Module IO Board that corresponds to your Compute Module model.

  • A micro USB cable, or a USB-C cable for Compute Module models since CM5IO.

Tip
 In some cases, USB hubs can prevent the host device from recognising the Compute Module. If your host device does not recognise the Compute Module, try connecting the Compute Module directly to the host device. For more diagnostic tips, see the usbboot troubleshooting guide.

Set up the IO Board

To begin, physically set up your IO Board. This includes connecting the Compute Module and host device to the IO Board.

  • Compute Module 5 IO Board

  • Compute Module 4 IO Board

  • Compute Module IO Board

To set up the Compute Module 5 IO Board:

  1. Connect the Compute Module to the IO board. When connected, the Compute Module should lie flat.

  2. Fit nRPI_BOOT to J2 (disable eMMC Boot) on the IO board jumper.

  3. Connect a cable from USB-C slave port J11 on the IO board to the host device.

To set up the Compute Module 4 IO Board:

  1. Connect the Compute Module to the IO board. When connected, the Compute Module should lie flat.

  2. Fit nRPI_BOOT to J2 (disable eMMC Boot) on the IO board jumper.

  3. Connect a cable from micro USB slave port J11 on the IO board to the host device.

To set up the Compute Module IO Board:

  1. Connect the Compute Module to the IO board. When connected, the Compute Module should lie parallel to the board, with the engagement clips firmly clicked into place.

  2. Set J4 (USB SLAVE BOOT ENABLE) to 1-2 = (USB BOOT ENABLED)

  3. Connect a cable from micro USB slave port J15 on the IO board to the host device.

Set up the host device

Next, let’s set up software on the host device.

Tip
 For a host device, we recommend a Raspberry Pi 4 or newer running 64-bit Raspberry Pi OS.

  • Linux

  • macOS

  • Windows

To set up software on a Linux host device:

  1. Run the following command to install rpiboot (or, alternatively, build rpiboot from source):

    $ sudo apt install rpiboot

  2. Connect the IO Board to power.

  3. Then, run rpiboot:

    $ sudo rpiboot

  4. After a few seconds, the Compute Module should appear as a mass storage device. Check the /dev/ directory, likely /dev/sda or /dev/sdb, for the device. Alternatively, run lsblk and search for a device with a storage capacity that matches the capacity of your Compute Module.

To set up software on a macOS host device:

  1. First, build rpiboot from source.

  2. Connect the IO Board to power.

  3. Then, run the rpiboot executable with the following command:

    $ rpiboot -d mass-storage-gadget64

  4. When the command finishes running, you should see a message stating "The disk you inserted was not readable by this computer." Click Ignore. Your Compute Module should now appear as a mass storage device.

To set up software on a Windows 11 host device:

  1. Download the latest Windows installer from the releases page or build rpiboot from source.

  2. Double-click on the installer to run it. This installs the drivers and boot tool. Do not close any driver installation windows which appear during the installation process.

  3. Reboot

  4. Connect the IO Board to power. Windows should discover the hardware and configure the required drivers.

  5. Select rpiboot - Mass Storage Gadget from the start menu. After a few seconds, the Compute Module eMMC, NVMe or SD card appears as a USB mass storage device. This also provides a debug console as a serial port gadget.

Flash the eMMC

You can use Raspberry Pi Imager to flash an operating system image to a Compute Module.

Alternatively, use dd to write a raw OS image (such as Raspberry Pi OS) to your Compute Module. Run the following command, replacing /dev/sdX with the path to the mass storage device representation of your Compute Module and raw_os_image.img with the path to your raw OS image:

$ sudo dd if=raw_os_image.img of=/dev/sdX bs=4MiB

Once the image has been written, disconnect and reconnect the Compute Module. You should now see two partitions (for Raspberry Pi OS):

/dev/sdX    <- Device
/dev/sdX1   <- First partition (FAT)
/dev/sdX2   <- Second partition (Linux filesystem)

You can mount the /dev/sdX1 and /dev/sdX2 partitions normally.

Boot from eMMC

  • Compute Module 5 IO Board

  • Compute Module 4 IO Board

  • Compute Module IO Board

Disconnect nRPI_BOOT from J2 (disable eMMC Boot) on the IO board jumper.

Disconnect nRPI_BOOT from J2 (disable eMMC Boot) on the IO board jumper.

Set J4 (USB SLAVE BOOT ENABLE) to 2-3 (USB BOOT DISABLED).

Boot

Disconnect the USB slave port. Power-cycle the IO board to boot the Compute Module from the new image you just wrote to eMMC.

Known issues

  • A small percentage of CM3 devices may experience problems booting. We have traced these back to the method used to create the FAT32 partition; we believe the problem is due to a difference in timing between the CPU and eMMC. If you have trouble booting your CM3, create the partitions manually with the following commands:

    $ sudo parted /dev/<device>
(parted) mkpart primary fat32 4MiB 64MiB
(parted) q
$ sudo mkfs.vfat -F32 /dev/<device>
$ sudo cp -r <files>/* <mountpoint>

  • The CM1 bootloader returns a slightly incorrect USB packet to the host. Most USB hosts ignore it, but some USB ports don’t work due to this bug. CM3 fixed this bug.

Compute Module EEPROM bootloader

Edit this on GitHub

Since Compute Module 4, Compute Modules use an EEPROM bootloader. This bootloader lives in a small segment of on-board storage instead of the boot partition. As a result, it requires different procedures to update. Before using a Compute Module with an EEPROM bootloader in production, always follow these best practices:

  • Select a specific bootloader release. Verify that every Compute Module you use has that release. The version in the usbboot repo is always a recent stable release.

  • Configure the boot device by setting the BOOT_ORDER .

  • Enable hardware write-protection on the bootloader EEPROM to ensure that the bootloader can’t be modified on inaccessible products (such as remote or embedded devices).

Flash Compute Module bootloader EEPROM

To flash the bootloader EEPROM:

  1. Set up the hardware as you would when flashing the eMMC, but ensure EEPROM_nWP is not pulled low.

  2. Run the following command to write recovery/pieeprom.bin to the bootloader EEPROM:

    $ ./rpiboot -d recovery

  3. Once complete, EEPROM_nWP may be pulled low again.

Flash storage devices other than SD cards

The Linux-based mass-storage-gadget supports flashing of NVMe, eMMC and USB block devices. mass-storage-gadget writes devices faster than the firmware-based rpiboot mechanism, and also provides a UART console to the device for debugging.

usbboot also includes a number of extensions that enable you to interact with the EEPROM bootloader on a Compute Module.

Update the Compute Module bootloader

On Compute Modules with an EEPROM bootloader, ROM never runs recovery.bin from SD/eMMC. These Compute Modules disable the rpi-eeprom-update service by default, because eMMC is not removable and an invalid recovery.bin file could prevent the system from booting.

You can override this behaviour with self-update mode. In self-update mode, you can update the bootloader from USB MSD or network boot.

Warning
 self-update mode does not update the bootloader atomically. If a power failure occurs during an EEPROM update, you could corrupt the EEPROM.

Modify the bootloader configuration

To modify the Compute Module EEPROM bootloader configuration:

  1. Navigate to the usbboot/recovery directory.

  2. If you require a specific bootloader release, replace pieeprom.original.bin with the equivalent from your bootloader release.

  3. Edit the default boot.conf bootloader configuration file to define a BOOT_ORDER:

    • For network boot, use BOOT_ORDER=0xf2.

    • For SD/eMMC boot, use BOOT_ORDER=0xf1.

    • For USB boot failing over to eMMC, use BOOT_ORDER=0xf15.

    • For NVMe boot, use BOOT_ORDER=0xf6.

  4. Run ./update-pieeprom.sh to generate a new EEPROM image pieeprom.bin image file.

  5. If you require EEPROM write-protection, add eeprom_write_protect=1 to /boot/firmware/config.txt.

    • Once enabled in software, you can lock hardware write-protection by pulling the EEPROM_nWP pin low.

  6. Run the following command to write the updated pieeprom.bin image to EEPROM:

    $ ../rpiboot -d .

Wire peripherals

Edit this on GitHub

This guide helps developers wire up peripherals to the Compute Module pins, and explains how to enable these peripherals in software.

Most of the pins of the SoC, including the GPIO, two CSI camera interfaces, two DSI display interfaces, and HDMI are available for wiring. You can can usually leave unused pins disconnected.

Compute Modules that come in the DDR2 SODIMM form factor are physically compatible with any DDR2 SODIMM socket. However, the pinout is not the same as SODIMM memory modules.

To use a Compute Module, a user must design a motherboard that:

  • provides power to the Compute Module (3.3V and 1.8V at minimum)

  • connects the pins to the required peripherals for the user’s application

This guide first explains the boot process and how Device Tree describes attached hardware.

Then, we’ll explain how to attach an I2C and an SPI peripheral to an IO Board. Finally, we’ll create the Device Tree files necessary to use both peripherals with Raspberry Pi OS.

BCM283x GPIOs

BCM283x has three banks of general-purpose input/output (GPIO) pins: 28 pins on Bank 0, 18 pins on Bank 1, and 8 pins on Bank 2, for a total of 54 pins. These pins can be used as true GPIO pins: software can set them as inputs or outputs, read and/or set state, and use them as interrupts. They also can run alternate functions such as I2C, SPI, I2S, UART, SD card, and others.

You can use Bank 0 or Bank 1 on any Compute Module. Don’t use Bank 2: it controls eMMC, HDMI hot plug detect, and ACT LED/USB boot control.

Use pinctrl to check the voltage and function of the GPIO pins to see if your Device Tree is working as expected.

BCM283x boot process

BCM283x devices have a VideoCore GPU and Arm CPU cores. The GPU consists of a DSP processor and hardware accelerators for imaging, video encode and decode, 3D graphics, and image compositing.

In BCM283x devices, the DSP core in the GPU boots first. It handles setup before booting up the main Arm processors.

Raspberry Pi BCM283x devices have a three-stage boot process:

  • The GPU DSP comes out of reset and executes code from the small internal boot ROM. This code loads a second-stage bootloader via an external interface. This code first looks for a second-stage boot loader on the boot device called bootcode.bin on the boot partition. If no boot device is found or bootcode.bin is not found, the boot ROM waits in USB boot mode for a host to provide a second-stage boot loader (usbbootcode.bin).

  • The second-stage boot loader is responsible for setting up the LPDDR2 SDRAM interface and other critical system functions. Once set up, the second-stage boot loader loads and executes the main GPU firmware (start.elf).

  • start.elf handles additional system setup and boots up the Arm processor subsystem. It contains the GPU firmware. The GPU firmware first reads dt-blob.bin to determine initial GPIO pin states and GPU-specific interfaces and clocks, then parses config.txt. It then loads a model-specific Arm device tree file and any Device Tree overlays specified in config.txt before starting the Arm subsystem and passing the Device Tree data to the booting Linux kernel.

Device Tree

Linux Device Tree for Raspberry Pi encodes information about hardware attached to a system as well as the drivers used to communicate with that hardware.

The boot partition contains several binary Device Tree (.dtb) files. The Device Tree compiler creates these binary files using human-readable Device Tree descriptions (.dts).

The boot partition contains two different types of Device Tree files. One is used by the GPU only; the rest are standard Arm Device Tree files for each of the BCM283x-based Raspberry Pi products:

  • dt-blob.bin (used by the GPU)

  • bcm2708-rpi-b.dtb (Used for Raspberry Pi 1 Models A and B)

  • bcm2708-rpi-b-plus.dtb (Used for Raspberry Pi 1 Models B+ and A+)

  • bcm2709-rpi-2-b.dtb (Used for Raspberry Pi 2 Model B)

  • bcm2710-rpi-3-b.dtb (Used for Raspberry Pi 3 Model B)

  • bcm2708-rpi-cm.dtb (Used for Raspberry Pi Compute Module 1)

  • bcm2710-rpi-cm3.dtb (Used for Raspberry Pi Compute Module 3)

During boot, the user can specify a specific Arm Device Tree to use via the device_tree parameter in config.txt. For example, the line device_tree=mydt.dtb in config.txt specifies an Arm Device Tree in a file named mydt.dtb.

You can create a full Device Tree for a Compute Module product, but we recommend using overlays instead. Overlays add descriptions of non-board-specific hardware to the base Device Tree. This includes GPIO pins used and their function, as well as the devices attached, so that the correct drivers can be loaded. The bootloader merges overlays with the base Device Tree before passing the Device Tree to the Linux kernel. Occasionally the base Device Tree changes, usually in a way that will not break overlays.

Use the dtoverlay parameter in config.txt to load Device Tree overlays. Raspberry Pi OS assumes that all overlays are located in the /overlays directory and use the suffix -overlay.dtb. For example, the line dtoverlay=myoverlay loads the overlay /overlays/myoverlay-overlay.dtb.

To wire peripherals to a Compute Module, describe all hardware attached to the Bank 0 and Bank 1 GPIOs in an overlay. This allows you to use standard Raspberry Pi OS images, since the overlay is merged into the standard base Device Tree. Alternatively, you can define a custom Device Tree for your application, but you won’t be able to use standard Raspberry Pi OS images. Instead, you must create a modified Raspberry Pi OS image that includes your custom device tree for every OS update you wish to distribute. If the base overlay changes, you might need to update your customised Device Tree.

dt-blob.bin

When start.elf runs, it first reads dt-blob.bin. This is a special form of Device Tree blob which tells the GPU how to set up the GPIO pin states.

dt-blob.bin contains information about GPIOs and peripherals controlled by the GPU, instead of the SoC. For example, the GPU manages Camera Modules. The GPU needs exclusive access to an I2C interface and a couple of pins to talk to a Camera Module.

On most Raspberry Pi models, I2C0 is reserved for exclusive GPU use. dt-blob.bin defines the GPIO pins used for I2C0.

By default, dt-blob.bin does not exist. Instead, start.elf includes a built-in version of the file. Many Compute Module projects provide a custom dt-blob.bin which overrides the default built-in file.

dt-blob.bin specifies:

  • the pin used for HDMI hot plug detect

  • GPIO pins used as a GPCLK output

  • an ACT LED that the GPU can use while booting

minimal-cm-dt-blob.dts is an example .dts device tree file. It sets up HDMI hot plug detection, an ACT LED, and sets all other GPIOs as inputs with default pulls.

To compile minimal-cm-dt-blob.dts to dt-blob.bin, use the Device Tree compiler dtc. To install dtc on a Raspberry Pi, run the following command:

$ sudo apt install device-tree-compiler

Then, run the follow command to compile minimal-cm-dt-blob.dts into dt-blob.bin:

$ dtc -I dts -O dtb -o dt-blob.bin minimal-cm-dt-blob.dts

For more information, see our guide to creating dt-blob.bin.

Arm Linux Device Tree

After start.elf reads dt-blob.bin and sets up the initial pin states and clocks, it reads config.txt, which contains many other options for system setup.

After reading config.txt, start.elf reads a model-specific Device Tree file. For instance, Compute Module 3 uses bcm2710-rpi-cm.dtb. This file is a standard Arm Linux Device Tree file that details hardware attached to the processor. It enumerates:

  • what and where peripheral devices exist

  • which GPIOs are used

  • what functions those GPIOs have

  • what physical devices are connected

This file sets up the GPIOs by overwriting the pin state in dt-blob.bin if it is different. It will also try to load drivers for the specific devices.

The model-specific Device Tree file contains disabled entries for peripherals. It contains no GPIO pin definitions other than the eMMC/SD Card peripheral which has GPIO defs and always uses the same pins.

Device Tree source and compilation

The Raspberry Pi OS image provides compiled dtb files, but the source dts files live in the Raspberry Pi Linux kernel branch. Look for rpi in the file names.

Default overlay dts files live at arch/arm/boot/dts/overlays. These overlay files are a good starting point for creating your own overlays. To compile these dts files to dtb files, use the Device Tree compiler dtc.

When building your own kernel, the build host requires the Device Tree compiler in scripts/dtc. To build your overlays automatically, add them to the dtbs make target in arch/arm/boot/dts/overlays/Makefile.

Device Tree debugging

When booting the Linux kernel, the GPU provides a fully assembled Device Tree created using the base dts and any overlays. This full tree is available via the Linux proc interface in /proc/device-tree. Nodes become directories and properties become files.

You can use dtc to write this out as a human readable dts file for debugging. To see the fully assembled device tree, run the following command:

$ dtc -I fs -O dts -o proc-dt.dts /proc/device-tree

pinctrl provides the status of the GPIO pins. If something seems to be going awry, try dumping the GPU log messages:

$ sudo vclog --msg
Tip
 To include even more diagnostics in the output, add dtdebug=1 to config.txt.

Use the Device Tree Raspberry Pi forum to ask Device Tree-related questions or report an issue.

Examples

The following examples use an IO Board with peripherals attached via jumper wires. We assume a CM1+CMIO or CM3+CMIO3, running a clean install of Raspberry Pi OS Lite. The examples here require internet connectivity, so we recommend a USB hub, keyboard, and wireless LAN or Ethernet dongle plugged into the IO Board USB port.

Attach an I2C RTC to Bank 1 pins

In this example, we wire an NXP PCF8523 real time clock (RTC) to the IO Board Bank 1 GPIO pins: 3V3, GND, I2C1_SDA on GPIO44 and I2C1_SCL on GPIO45.

Download minimal-cm-dt-blob.dts and copy it to the boot partition in /boot/firmware/.

Edit minimal-cm-dt-blob.dts and change the pin states of GPIO44 and 45 to be I2C1 with pull-ups:

$ sudo nano /boot/firmware/minimal-cm-dt-blob.dts

Replace the following lines:

pin@p44 { function = "input"; termination = "pull_down"; }; // DEFAULT STATE WAS INPUT NO PULL
pin@p45 { function = "input"; termination = "pull_down"; }; // DEFAULT STATE WAS INPUT NO PULL

With the following pull-up definitions:

pin@p44 { function = "i2c1"; termination = "pull_up"; }; // SDA1
pin@p45 { function = "i2c1"; termination = "pull_up"; }; // SCL1

We could use this dt-blob.dts with no changes, because the Linux Device Tree re-configures these pins during Linux kernel boot when the specific drivers load. However, if you configure dt-blob.dts, the GPIOs reach their final state as soon as possible during the GPU boot stage. In some cases, pins must be configured at GPU boot time so they are in a specific state when Linux drivers are loaded. For example, a reset line may need to be held in the correct orientation.

Run the following command to compile dt-blob.bin:

$ sudo dtc -I dts -O dtb -o /boot/firmware/dt-blob.bin /boot/firmware/minimal-cm-dt-blob.dts

Download example1-overlay.dts, copy it to the boot partition in /boot/firmware/, then compile it with the following command:

$ sudo dtc -@ -I dts -O dtb -o /boot/firmware/overlays/example1.dtbo /boot/firmware/example1-overlay.dts

The -@ flag compiles dts files with external references. It is usually necessary.

Add the following line to /boot/firmware/config.txt:

dtoverlay=example1

Finally, reboot with sudo reboot.

Once rebooted, you should see an rtc0 entry in /dev. Run the following command to view the hardware clock time:

$ sudo hwclock

Attach an ENC28J60 SPI Ethernet controller on Bank 0

In this example, we use an overlay already defined in /boot/firmware/overlays to add an ENC28J60 SPI Ethernet controller to Bank 0. The Ethernet controller uses SPI pins CE0, MISO, MOSI and SCLK (GPIO8-11 respectively), GPIO25 for a falling edge interrupt, in addition to GND and 3.3V.

In this example, we won’t change dt-blob.bin. Instead, add the following line to /boot/firmware/config.txt:

dtoverlay=enc28j60

Reboot with sudo reboot.

If you now run ifconfig you should see an additional eth<n> entry for the ENC28J60 NIC. You should also have Ethernet connectivity. Run the following command to test your connectivity:

$ ping 8.8.8.8

Run the following command to show GPIO functions; GPIO8-11 should now provide ALT0 (SPI) functions:

$ pinctrl

Attach a Camera Module

Edit this on GitHub

The Compute Module has two CSI-2 camera interfaces: CAM1 and CAM0. This section explains how to connect one or two Raspberry Pi Cameras to a Compute Module using the CAM1 and CAM0 interfaces with a Compute Module I/O Board.

Update your system

Before configuring a camera, ensure that your Raspberry Pi firmware is up-to-date.:

$ sudo apt update
$ sudo apt full-upgrade

Connect one camera

To connect a single camera to a Compute Module, complete the following steps:

  1. Disconnect the Compute Module from power.

  2. Connect the Camera Module to the CAM1 port using a RPI-CAMERA board or a Raspberry Pi Zero camera cable.

    Connecting the adapter board

  3. (CM5 only): Fit two jumpers on J6 per the board’s written instructions.

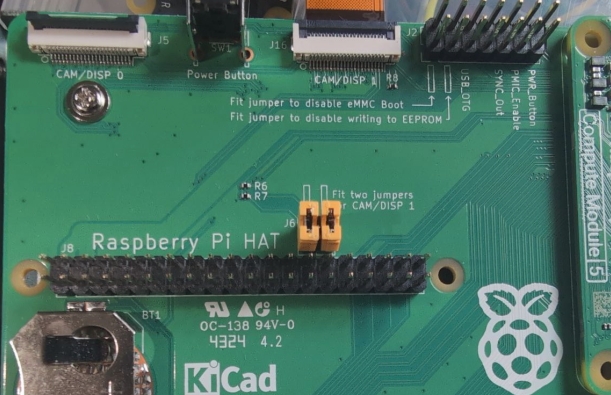

    Jumpers on J6 for CAM1

  4. (CM1, CM3, CM3+, and CM4S only): Connect the following GPIO pins with jumper cables:

    • 0 to CD1_SDA

    • 1 to CD1_SCL

    • 2 to CAM1_I01

    • 3 to CAM1_I00

      GPIO connection for a single camera

  5. Reconnect the Compute Module to power.

  6. Remove (or comment out with the prefix #) the following lines, if they exist, in /boot/firmware/config.txt:

    camera_auto_detect=1
    dtparam=i2c_arm=on

  7. (CM1, CM3, CM3+, and CM4S only): Add the following directive to /boot/firmware/config.txt to accommodate the swapped GPIO pin assignment on the I/O board:

    dtoverlay=cm-swap-i2c0

  8. (CM1, CM3, CM3+, and CM4S only): Add the following directive to /boot/firmware/config.txt to assign GPIO 3 as the CAM1 regulator:

    dtparam=cam1_reg

  9. Add the appropriate directive to /boot/firmware/config.txt to manually configure the driver for your camera model:

    camera model directive

    v1 camera

    dtoverlay=ov5647

    v2 camera

    dtoverlay=imx219

    v3 camera

    dtoverlay=imx708

    HQ camera

    dtoverlay=imx477

    GS camera

    dtoverlay=imx296

  10. Reboot your Compute Module with sudo reboot.

  11. Run the following command to check the list of detected cameras:

    $ rpicam-hello --list

    You should see your camera model, referred to by the driver directive in the table above, in the output.

Connect two cameras

To connect two cameras to a Compute Module, complete the following steps:

  1. Follow the single camera instructions above.

  2. Disconnect the Compute Module from power.

  3. Connect the Camera Module to the CAM0 port using a RPI-CAMERA board or a Raspberry Pi Zero camera cable.

    Connect the adapter board

  4. (CM1, CM3, CM3+, and CM4S only): Connect the following GPIO pins with jumper cables:

    • 28 to CD0_SDA

    • 29 to CD0_SCL

    • 30 to CAM0_I01

    • 31 to CAM0_I00

      GPIO connection with additional camera

  5. (CM4): Connect the J6 GPIO pins with two vertical-orientation jumpers.

    Connect the J6 GPIO pins in vertical orientation

  6. Reconnect the Compute Module to power.

  7. (CM1, CM3, CM3+, and CM4S only): Add the following directive to /boot/firmware/config.txt to assign GPIO 31 as the CAM0 regulator:

    dtparam=cam0_reg

  8. Add the appropriate directive to /boot/firmware/config.txt to manually configure the driver for your camera model:

    camera model directive

    v1 camera

    dtoverlay=ov5647,cam0

    v2 camera

    dtoverlay=imx219,cam0

    v3 camera

    dtoverlay=imx708,cam0

    HQ camera

    dtoverlay=imx477,cam0

    GS camera

    dtoverlay=imx296,cam0

  9. Reboot your Compute Module with sudo reboot.

  10. Run the following command to check the list of detected cameras:

    $ rpicam-hello --list

    You should see both camera models, referred to by the driver directives in the table above, in the output.

Software

Raspberry Pi OS includes the libcamera library to help you take images with your Raspberry Pi.

Take a picture

Use the following command to immediately take a picture and save it to a file in PNG encoding using the MMDDhhmmss date format as a filename:

$ rpicam-still --datetime -e png

Use the -t option to add a delay in milliseconds. Use the --width and --height options to specify a width and height for the image.

Take a video

Use the following command to immediately start recording a ten-second long video and save it to a file with the h264 codec named video.h264:

$ rpicam-vid -t 10000 -o video.h264

Specify which camera to use

By default, libcamera always uses the camera with index 0 in the --list-cameras list. To specify a camera option, get an index value for each camera from the following command:

$ rpicam-hello --list-cameras
Available cameras
-----------------
0 : imx477 [4056x3040] (/base/soc/i2c0mux/i2c@1/imx477@1a)
    Modes: 'SRGGB10_CSI2P' : 1332x990 [120.05 fps - (696, 528)/2664x1980 crop]
           'SRGGB12_CSI2P' : 2028x1080 [50.03 fps - (0, 440)/4056x2160 crop]
                             2028x1520 [40.01 fps - (0, 0)/4056x3040 crop]
                             4056x3040 [10.00 fps - (0, 0)/4056x3040 crop]

1 : imx708 [4608x2592] (/base/soc/i2c0mux/i2c@0/imx708@1a)
    Modes: 'SRGGB10_CSI2P' : 1536x864 [120.13 fps - (768, 432)/3072x1728 crop]
                             2304x1296 [56.03 fps - (0, 0)/4608x2592 crop]
                             4608x2592 [14.35 fps - (0, 0)/4608x2592 crop]

In the above output:

  • imx477 refers to a HQ camera with an index of 0

  • imx708 refers to a v3 camera with an index of 1

To use the HQ camera, pass its index (0) to the --camera libcamera option:

$ rpicam-hello --camera 0

To use the v3 camera, pass its index (1) to the --camera libcamera option:

$ rpicam-hello --camera 1

I2C mapping of GPIO pins

By default, the supplied camera drivers assume that CAM1 uses i2c-10 and CAM0 uses i2c-0. Compute module I/O boards map the following GPIO pins to i2c-10 and i2c-0:

I/O Board Model i2c-10 pins i2c-0 pins

CM4 I/O Board

GPIOs 44,45

GPIOs 0,1

CM1, CM3, CM3+, CM4S I/O Board

GPIOs 0,1

GPIOs 28,29

To connect a camera to the CM1, CM3, CM3+ and CM4S I/O Board, add the following directive to /boot/firmware/config.txt to accommodate the swapped pin assignment:

dtoverlay=cm-swap-i2c0

Alternative boards may use other pin assignments. Check the documentation for your board and use the following alternate overrides depending on your layout:

Swap Override

Use GPIOs 0,1 for i2c0

i2c0-gpio0

Use GPIOs 28,29 for i2c0 (default)

i2c0-gpio28

Use GPIOs 44&45 for i2c0

i2c0-gpio44

Use GPIOs 0&1 for i2c10 (default)

i2c10-gpio0

Use GPIOs 28&29 for i2c10

i2c10-gpio28

Use GPIOs 44&45 for i2c10

i2c10-gpio44

GPIO pins for shutdown

For camera shutdown, Device Tree uses the pins assigned by the cam1_reg and cam0_reg overlays.

The CM4 IO board provides a single GPIO pin for both aliases, so both cameras share the same regulator.

The CM1, CM3, CM3+, and CM4S I/O boards provides no GPIO pin for cam1_reg and cam0_reg, so the regulators are disabled on those boards. However, you can enable them with the following directives in /boot/firmware/config.txt:

  • dtparam=cam1_reg

  • dtparam=cam0_reg

To assign cam1_reg and cam0_reg to a specific pin on a custom board, use the following directives in /boot/firmware/config.txt:

  • dtparam=cam1_reg_gpio=<pin number>

  • dtparam=cam0_reg_gpio=<pin number>

For example, to use pin 42 as the regulator for CAM1, add the directive dtparam=cam1_reg_gpio=42 to /boot/firmware/config.txt.

These directives only work for GPIO pins connected directly to the SoC, not for expander GPIO pins.

Attaching the Touch Display LCD panel

Edit this on GitHub

Update your system software and firmware to the latest version before starting. Compute Modules mostly use the same process, but sometimes physical differences force changes for a particular model.

Connect a display to DISP1/DSI1

Note
 The Raspberry Pi Zero camera cable can’t be used as an alternative to the RPI-DISPLAY adapter. The two cables have distinct wiring.

To connect a display to DISP1/DSI1:

  1. Disconnect the Compute Module from power.

  2. Connect the display to the DISP1/DSI1 port on the Compute Module IO board through the 22 W to 15 W display adapter.

  3. Complete the appropriate jumper connections:

    • For CM1, CM3, CM3+, and CM4S, connect the following GPIO pins with jumper cables:

      • 0 to CD1_SDA

      • 1 to CD1_SCL

    • For CM5, on the Compute Module 5 IO board, add the appropriate jumpers to J6, as indicated on the silkscreen.

  4. Reconnect the Compute Module to power.

  5. Add dtoverlay=vc4-kms-dsi-7inch to /boot/firmware/config.txt.

  6. Reboot your Compute Module with sudo reboot. Your device should detect and begin displaying output to your display.

Connect a display to DISP0/DSI0

To connect a display to DISP0/DSI0 on CM1, CM3, and CM4 IO boards:

  1. Connect the display to the DISP0/DSI0 port on the Compute Module IO board through the 22 W to 15 W display adapter.

  2. Complete the appropriate jumper connections:

    • For CM1, CM3, CM3+, and CM4S, connect the following GPIO pins with jumper cables:

      • 28 to CD0_SDA

      • 29 to CD0_SCL

    • For CM4, on the Compute Module 4 IO board, add the appropriate jumpers to J6, as indicated on the silkscreen.

  3. Reconnect the Compute Module to power.

  4. Add dtoverlay=vc4-kms-dsi-7inch,dsi0 to /boot/firmware/config.txt.

  5. Reboot your Compute Module with sudo reboot. Your device should detect and begin displaying output to your display.

Disable touchscreen

The touchscreen requires no additional configuration. Connect it to your Compute Module; both the touchscreen element and display work when successfully detected.

To disable the touchscreen element, but still use the display, add the following line to /boot/firmware/config.txt:

disable_touchscreen=1

Disable display

To entirely ignore the display when connected, add the following line to /boot/firmware/config.txt:

ignore_lcd=1

Attaching the Touch Display 2 LCD panel

Touch Display 2 is an LCD display designed for Raspberry Pi devices (see https://www.raspberrypi.com/products/touch-display-2/). It’s available in two sizes: 5 inches or 7 inches (diagonally). For more information about these options, see Specifications in Touch Display 2.

Regardless of the size that you use, Touch Display 2 connects in the same way as the original Touch Display, but the software setup on Compute Modules is slightly different because it uses a different display driver. For connection details, see Connectors in Touch Display 2.

To enable Touch Display 2 on DISP1/DSI1, edit the /boot/firmware/config.txt file to add the following. You must also add jumpers to J6 as indicated on the silkscreen.

  • For the 5-inch display: dtoverlay=vc4-kms-dsi-ili9881-5inch

  • For the 7-inch display: dtoverlay=vc4-kms-dsi-ili9881-7inch

To use DISP0/DSI0, append ,dsi0 to the overlay name.

  • For the 5-inch display: dtoverlay=vc4-kms-dsi-ili9881-5inch,dsi0

  • For the 7-inch display: dtoverlay=vc4-kms-dsi-ili9881-7inch,dsi0

Specifications

Edit this on GitHub

Compute Module 5 datasheet

To learn more about Compute Module 5 (CM5) and its corresponding IO Board, see the following documents:

Compute Module 5 IO Board datasheet

Design data for the Compute Module 5 IO Board (CM5IO) can be found in its datasheet:

Compute Module 4 datasheet

To learn more about Compute Module 4 (CM4) and its corresponding IO Board, see the following documents:

Configure the Compute Module 4

Configure the Compute Module 4

The Compute Module 4 is available in a number of different hardware configurations. Some use cases disable certain features that aren’t required.

This document describes how to disable various hardware and software interfaces.

Compute Module 4 IO Board datasheet

Design data for the Compute Module 4 IO Board (CM4IO) can be found in its datasheet:

We also provide a KiCad PCB design set for the CM4 IO Board:

Compute Module 4S datasheet

Compute Module 4S (CM4S) offers the internals of CM4 in the DDR2-SODIMM form factor of CM1, CM3, and CM3+. To learn more about CM4S, see the following documents:

Compute Module 3+ datasheet

Compute Module 3+ (CM3+) is a supported product with an end-of-life (EOL) date no earlier than January 2028. To learn more about CM3+ and its corresponding IO Board, see the following documents:

Compute Module 1 and Compute Module 3 datasheet

Raspberry Pi Compute Module 1 (CM1) and Compute Module 3 (CM3) are supported products with an end-of-life (EOL) date no earlier than January 2026. To learn more about CM1 and CM3, see the following documents:

Transition from Compute Module 1 or Compute Module 3 to Compute Module 4

Transition from Compute Module 1 or Compute Module 3 to Compute Module 4

This white paper helps developers migrate from Compute Module 1 or Compute Module 3 to Compute Module 4.

Compute Module IO Board schematics

The Compute Module IO Board (CMIO) provides a variety of interfaces for CM1, CM3, CM3+, and CM4S. The Compute Module IO Board comes in two variants: Version 1 and Version 3. Version 1 is only compatible with CM1. Version 3 is compatible with CM1, CM3, CM3+, and CM4S. Compute Module IO Board Version 3 is sometimes written as the shorthand CMIO3. To learn more about CMIO1 and CMIO3, see the following documents:

Compute Module Camera/Display Adapter Board schematics

The Compute Module Camera/Display Adapter Board (CMCDA) provides camera and display interfaces for Compute Modules. To learn more about the CMCDA, see the following documents:

Under-voltage detection

The following schematic describes an under-voltage detection circuit, as used in older models of Raspberry Pi:

Under-voltage detect
