BitScope Micro
We met the folks from BitScope some months ago to talk about their plans for a miniature scope especially for the Raspberry Pi. They’ve just launched the product we discussed today, and our socks have been comprehensively knocked off by it; the engineers who sit behind me think this is one of the most exciting Raspberry Pi add-ons they’ve seen so far.
This is the BitScope Micro, built especially for the Raspberry Pi. It turns your Pi into a dual channel digital oscilloscope, a multi-channel logic analyser, a waveform and clock generator and a spectrum analyser; it comes bundled with BitScope’s full suite of software (well worth a look if you’re even slightly interested – this thing has features coming out of the wazoo), and it’s probably the cheapest digital scope we’ve ever seen, coming in at USD $95 if you buy in volume, and $145 at one-off retail. You can read much more at BitScope’s website.

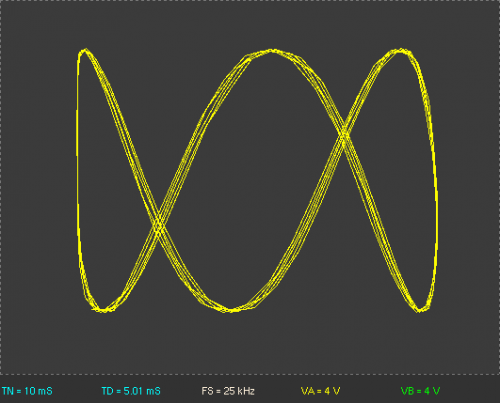

Sample output
More sample output
We think that’s an incredibly good deal – for the same analogue bandwidth in a bench scope you’re looking at an instrument that’s many, many times the price, even at retail.
The BitScope Micro comes bundled with ten signal clips and a USB cable.
It’s exciting for us to see proper scientific instrumentation coming to the Pi; we’re looking forward to seeing what the community does with tools like the BitScope Micro. Give us your ideas in the comments.
