Raspberry Coulis’s night vision camera

We’ve all been there: zombies at the door, Daleks on the driveway, creatures from the Upside Down in the walls. You want to be able to monitor their movements, but how do you do that without attracting their attention? Wesley Archer (AKA Raspberry Coulis) has the answer: a Pi-powered Night Vision Camera, perfect for catching unearthly creatures on the prowl — and for wildlife spotting, birdwatching, and home security too, I guess…

Wesley's Pi-powered Night Vision Camera

Wesley’s Pi-powered Night Vision Camera

Black box

To build his Night Vision Camera, Wesley ordered an infrared Lisiparoi LED Light Ring, a Cyntech Raspberry Pi case, a Pi NoIR Camera Module, and USB WiFi adapter. He based this project around a Raspberry Pi Model B that was in need of a good home, but there’s no reason why you couldn’t use a more up-to-date model with built-in wireless networking.

Wesley set about adapting the case to hold the camera and the infrared light, cutting a hole for the camera lens and attaching the LED Light Ring to the front of the box. The light ring acts as an infrared floodlight, invisible to the zombies, but when combined with the NoIR Camera Module, capable of capturing useful images in the dark. His blog includes helpful step-by-step instructions for this process — unlike Wesley, we recommend using a metal file from your toolbox, and not a nail file belonging to another member of your family. If you’re surrounded by the undead hordes, domestic harmony is essential.

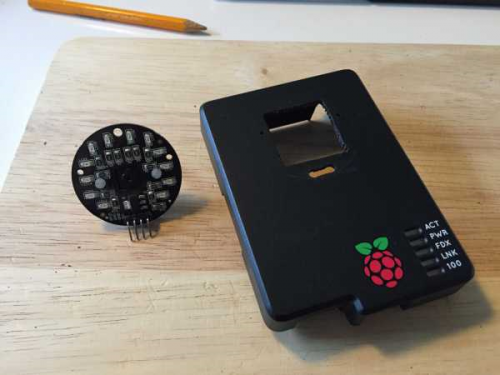

Cyntech Raspberry Pi case with a hole for the Camera Module - Night Vision Camera

Cutting holes in the case. Please don’t use your spouse’s nail file for this job …

Monitoring

When your hardware is complete, it’s time to install the software. Wesley chose MotionEyeOS to run his camera, and his blog explains the process of downloading and installing the software on your Pi. When everything is set up, and the Pi is connected to your WiFi network, all you need is the Pi’s IP address to view the feed from the camera. Type the IP address into a browser on the same WiFi network, log in, and you’ll soon be spotting intruders (supernatural or otherwise), or possibly watching the fluffy residents of your bird box. Whatever makes you happy.

Visibility

While a camera with night vision is obviously useful, both the Lisiparoi Light Ring and the Camera Module are available for use with the visible spectrum. You can order the Light Ring with infrared or standard white LEDs, and the standard Camera Module works with visible light. If you don’t mind attracting attention, both options could be used to monitor your perimeter for threats.

Saving the world

We think this project would be an amazing inspiration for the current Pioneers challenge, Only you can save us! Set up a camera to control entry to your secret bunker, even when the lights fail. Fend off attacks from zombies, Daleks, or giant spiders, and help save humanity from catastrophe!

Cute knitted zombies dancing - Night Vision Camera

Save yourselves!

Have you built a security system to keep your property safe from marauding zombies? Or even from regular burglars? Has your Pioneers team used infrared monitoring in your build? Tell us about it in the comments!
