Really awesome Raspberry Pi 4 X-ray radiographs

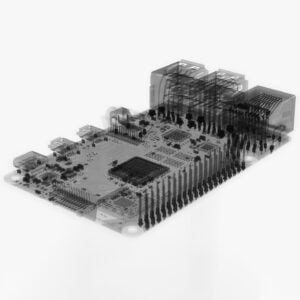

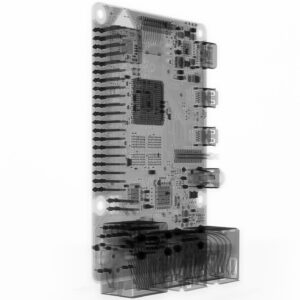

“I got my Pi in the post yesterday morning and I was desperately waiting until the end of the workday to get home and play with it! Took a few quick radiographs before I left because I had to.”

And we’re really happy that Reddit user xCP23x did. How cool are these?

“I work for a company that makes microfocus X-ray/CT systems!” xCP23x explained in their Reddit post. “Most of the images are from a 225kV system (good down to 3 microns).”

They used a Nikon XT H 225 ST: 225kV 225W X-ray source for the majority of the images. You can learn more about how the images were produced via the comments on their Reddit user page.

You can see the full Reddit post here, and more radiographs of the Raspberry Pi 4 here.

21 comments

RPi FAN avatar

So how many layers is RPi 4 B made from?

James Adams avatar

6

beta-tester avatar

nice…
… no hidden feature
… no easter egg
… no ram ?!

laurent avatar

The easter egg is behind the USB C port, and unfortunately, those X-ray views doesn’t allow to discover the mysterious signature :p

Wesley avatar

Do x-ray photos make the Pi 4 reboot? ;-)

jbeale avatar

Amazing images with such crisp detail, wow! Interesting how the RAM package, being just plastic and silicon is pretty much invisible to the x-rays except for the solder bumps.

jbeale avatar

If you go to the original Reddit post there are some other closer shots, including the PMIC chip near the USB-C port where you see it’s a power device with 3 or 4 bondwires each on many of the pads. Windings on the inductors are clear. I’ll say that is some tasty hardware he took those photos with.

Eric avatar

I knew it!

There’s an actual raspberry hidden in every Raspberry Pi!

jbeale avatar

We’re finally getting around to that future we were promised- flying cars are just about real, and now images like this.

jensebor avatar

but why are the images mirrored?

jbeale avatar

You might also wonder why the microSD card holder appears to be on the top of the board. Remember the x-rays are going right through everything, so the backside, frontside and interior are all combined together. I think the x-ray detector must be on the opposite side of the board from what your brain naturally assumes looking at the image.

Ultrapurple avatar

Hmmm – must add a microfocus X-Ray system to my wish list for Santa (and perhaps also on Azamon?)

Congratulations to xCP23x; as a veteran of X-raying Raspberry Pis I take my hat off to you for the fantastic quality of your work.

Neil avatar

A raspberry to you, Eric.

Skspurling avatar

Is that one of those triangle cavity wifi antenas by the wifi chip?

AndrewS avatar

Yup, search for “proant” on https://www.raspberrypi.org/blog/raspberry-pi-3-model-bplus-sale-now-35/ for more info.

Pauli Isoaho avatar

Nice and interesting photos, thanks

Martin avatar

Has his Pi now some superhero-capabilities?
Self-healing, invisibility, getting green when stressed?

Indeed really cool pictures.

m

Neil Macmillan avatar

Fascinating! BTW, Transistors can loose some gain if x-rayed, but the original gain returns if they’re powered-up and allowed to get hot for a while. Never x-ray CMOS with its power on ;O)
