Graphic routines for Raspberry Pi Pico screens

Pimoroni has brought out two add‑ons with screens: Pico Display and Pico Explorer. A very basic set of methods is provided in the Pimoroni UF2 file. In this article, we aim to explain how the screens are controlled with these low-level instructions, and provide a library of extra routines and example code to help you produce stunning displays.

You don't have to get creative with your text placement, but you can
You don’t have to get creative with your text placement, but you can

You will need to install the Pimoroni MicroPython UF2 file on your Pico and Thonny on your computer.

All graphical programs need the following ‘boilerplate’ code at the beginning to initialise the display and create the essential buffer. (We’re using a Pico Explorer – just change the first line for a Pico Display board.)

import picoexplorer as display
# import picodisplay as display
#Screen essentials
width = display.get_width()
height = display.get_height()
display_buffer = bytearray(width * height * 2)
display.init(display_buffer)

The four buttons give you a way of getting data back from the user as well as displaying information
The four buttons give you a way of getting data back from the user as well as displaying information

This creates a buffer with a 16-bit colour element for each pixel of the 240×240 pixel screen. The code invisibly stores colour values in the buffer which are then revealed with a display.update() instruction.

The top-left corner of the screen is the origin (0,0) and the bottom-right pixel is (239,239).

Supplied methods

display.set_pen(r, g, b)

Sets the current colour (red, green, blue) with values in the range 0 to 255.

grey = display.create_pen(100,100,100)

Allows naming of a colour for later use.

display.clear()

Fills all elements in the buffer with the current colour.

display.update()

Makes the current values stored in the buffer visible. (Shows what has been written.)

display.pixel(x, y)

Draws a single pixel with the current colour at
point(x, y).

display.rectangle(x, y ,w ,h)

Draws a filled rectangle from point(x, y), w pixels wide and h pixels high.

display.circle(x, y, r)

Draws a filled circle with centre (x, y) and radius r.

display.character(78, 112, 5 ,2)

Draws character number 78 (ASCII = ‘N’) at point (112,5) in size 2. Size 1 is very small, while 6 is rather blocky.

display.text("Pixels", 63, 25, 200, 4)

Draws the text on the screen from (63,25) in size 4 with text wrapping to next line at a ‘space’ if the text is longer than 200 pixels. (Complicated but very useful.)

display.pixel_span(30,190,180)

Draws a horizontal line 180 pixels long from point (30,190).

display.set_clip(20, 135, 200, 100)

While the screens are quite small in size, they have plenty of pixels for display
While the screens are quite small in size, they have plenty of pixels for display

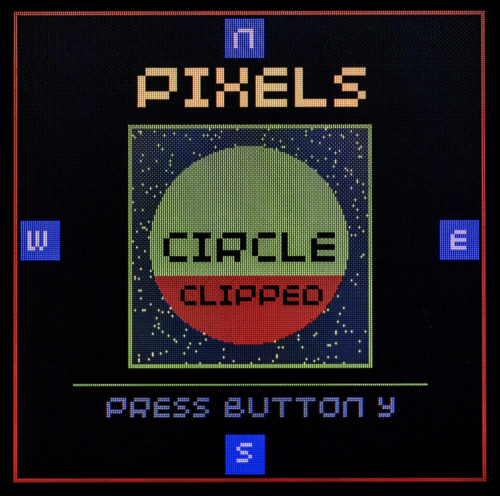

After this instruction, which sets a rectangular area from (20,135), 200 pixels wide and 100 pixels high, only pixels drawn within the set area are put into the buffer. Drawing outside the area is ignored. So only those parts of a large circle intersecting with the clip are effective. We used this method to create the red segment.

display.remove_clip()

This removes the clip.

display.update()

This makes the current state of the buffer visible on the screen. Often forgotten.

if display.is_pressed(3): # Y button is pressed ?

Read a button, numbered 0 to 3.

You can get more creative with the colours if you wish
You can get more creative with the colours if you wish

This code demonstrates the built-in methods and can be downloaded here.

# Pico Explorer - Basics
# Tony Goodhew - 20th Feb 2021
import picoexplorer as display
import utime, random
#Screen essentials
width = display.get_width()
height = display.get_height()
display_buffer = bytearray(width * height * 2)
display.init(display_buffer)

def blk():
    display.set_pen(0,0,0)
    display.clear()
    display.update()

def show(tt):
    display.update()
    utime.sleep(tt)

def title(msg,r,g,b):
    blk()
    display.set_pen(r,g,b)
    display.text(msg, 20, 70, 200, 4)
    show(2)
    blk()

# Named pen colour
grey = display.create_pen(100,100,100)
# ==== Main ======
blk()
title("Pico Explorer Graphics",200,200,0)
display.set_pen(255,0,0)
display.clear()
display.set_pen(0,0,0)
display.rectangle(2,2,235,235)
show(1)
# Blue rectangles
display.set_pen(0,0,255)
display.rectangle(3,107,20,20)
display.rectangle(216,107,20,20)
display.rectangle(107,3,20,20)
display.rectangle(107,216,20,20)
display.set_pen(200,200,200)
#Compass  points
display.character(78,112,5,2)   # N
display.character(83,113,218,2) # S
display.character(87,7,110,2)   # W
display.character(69,222,110,2) # E
show(1)

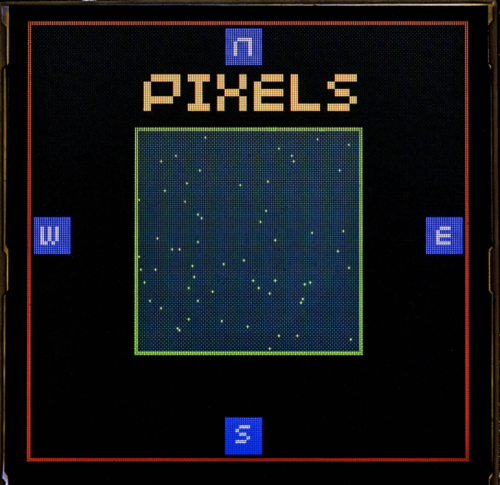

# Pixels
display.set_pen(255,255,0)
display.text("Pixels", 63, 25, 200, 4)
display.set_pen(0,200,0)
display.rectangle(58,58,124,124)
display.set_pen(30,30,30)
display.rectangle(60,60,120,120)
display.update()
display.set_pen(0,255,0)
for i in range(500):
    xp = random.randint(0,119) + 60
    yp = random.randint(0,119) + 60
    display.pixel(xp,yp)
    display.update()
show(1)
# Horizontal line
display.set_pen(0,180,0)
display.pixel_span(30,190,180)
show(1)
# Circle
display.circle(119,119,50)
show(1.5)
display.set_clip(20,135, 200, 100)
display.set_pen(200,0,0)
display.circle(119,119,50)
display.remove_clip()

display.set_pen(0,0,0)
display.text("Circle", 76, 110, 194, 3)
display.text("Clipped", 85, 138, 194, 2)
display.set_pen(grey) # Previously saved colour
# Button Y
display.text("Press button y", 47, 195, 208, 2)
show(0)
running = True
while running:
    if display.is_pressed(3): # Y button is pressed ?
        running = False
blk()

# Tidy up
title("Done",200,0,0)
show(2)
blk()

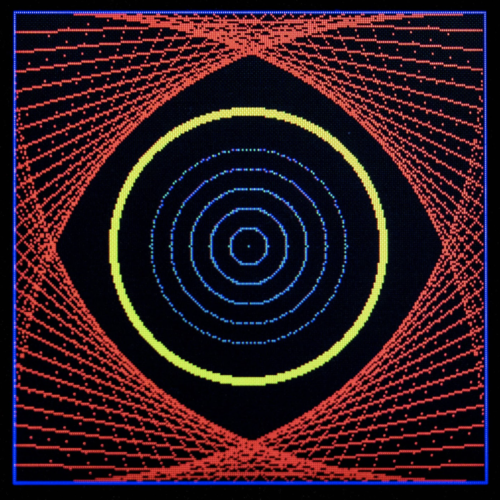

Straight lines can give the appearance of curves
Straight lines can give the appearance of curves

We’ve included three short procedures to help reduce code repetition:

def blk()

This clears the screen to black – the normal background colour.

def show(tt)

This updates the screen, making the buffer visible and then waits tt seconds.

def title(msg,r,g,b)

This is used to display the msg string in size 4 text in the specified colour for two seconds, and then clears the display.

As you can see from the demonstration, we can accomplish a great deal using just these built-in methods. However, it would be useful to be able to draw vertical lines, lines from point A to point B, hollow circles, and rectangles. If these are written as procedures, we can easily copy and paste them into new projects to save time and effort.

You don't need much to create interesting graphics
You don’t need much to create interesting graphics

In our second demonstration, we’ve included these ‘helper’ procedures. They use the parameters (t, l, r, b) to represent the (top, left) and the (right, bottom) corners of rectangles or lines.

def horiz(l,t,r):    # left, top, right

Draws a horizontal line.

def vert(l,t,b):   # left, top, bottom

Draws a vertical line.

def box(l,t,r,b):  # left, top, right, bottom

Draws an outline rectangular box.

def line(x,y,xx,yy):

Draws a line from (x,y) to (xx,yy).

def ring(cx,cy,rr,rim): # Centre, radius, thickness

Draws a circle, centred on (cx,cy), of outer radius rr and pixel thickness of rim. This is easy and fast but has the disadvantage that it wipes out anything inside ring

def ring2(cx,cy,r):   # Centre (x,y), radius

Draw a circle centred on (cx,cy), of radius rr with a single-pixel width. Can be used to flash a ring around something already drawn on the screen. You need to import math as it uses trigonometry.

def align(n, max_chars):

This returns a string version of int(n), right aligned in a string of max_chars length. Unfortunately, the font supplied by Pimoroni in its UF2 is not monospaced.

What will you create with your Pico display?
What will you create with your Pico display?

The second demonstration is too long to print, but can be downloaded here.

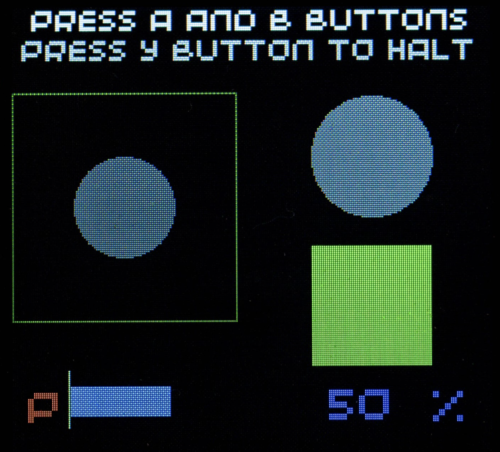

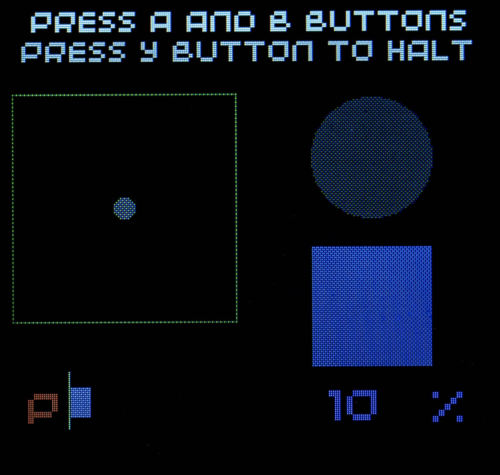

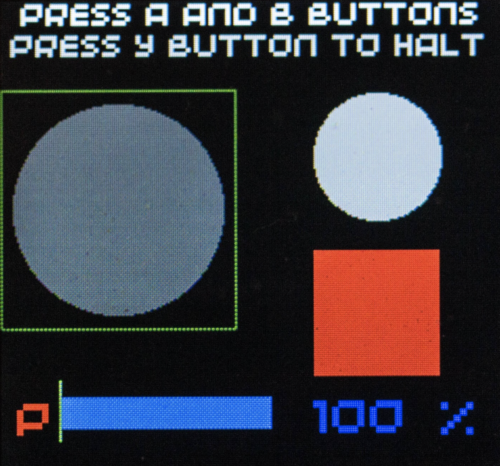

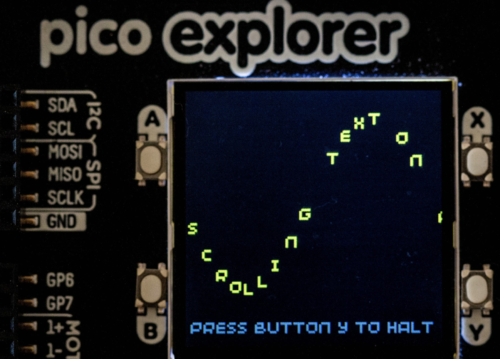

It illustrates the character set, drawing of lines, circles and boxes; plotting graphs, writing text at an angle or following a curved path, scrolling text along a sine curve, controlling an interactive bar graph with the buttons, updating a numeric value, changing the size and brightness of disks, and the colour of a rectangle.

The program is fully commented, so it should be quite easy to follow.

The most common coding mistake is to forget the display.update() instruction after drawing something. The second is putting it in the wrong place.

When overwriting text on the screen to update a changing value, you should first overwrite the value with a small rectangle in the background colour. Notice that the percentage value is right-aligned to lock the ‘units’ position.

It’s probably not a good idea to leave your display brightly lit for hours at a time. Several people have reported the appearance of ‘burn’ on a dark background, or ‘ghost’ marks after very bright items against a dark background have been displayed for some time. We’ve seen them on our display, but no long-term harm is evident. Blanking the screen in the ‘tidy-up’ sequence at the end of your program may help.

We hope you have found this tutorial useful and that it encourages you to start sending your output to a display. This is so much more rewarding than just printing to the REPL.

If you have a Pimoroni Pico Display, (240×135 pixels), all of these routines will work on your board.
