The CNC Wood Burner turning heads (and wood, obviously)
Why stick to conventional laser cutters or CNC machines for creating images on wood, when you can build a device to do the job that is a beautiful piece of art in itself? Mechanical and Computer Science student and Imgur user Tucker Shannon has created a wonderful-looking CNC Wood Burner using a Raspberry Pi and stepper motors. His project has a great vinyl-turntable-like design.
A CNC Wood Burner?
Sure! Why not? Tucker had already put the knowledge he acquired while studying at Oregon State University to good use by catching a bike thief in action with the help of a Raspberry Pi. Thus it’s obvious he has the skills he needed to incorporate our little computer into a project. Moreover, his Skittles portrait of Bill Nye is evidence of his artistic flair, so it’s not surprising that he wanted to make something a little different, and pretty, using code.

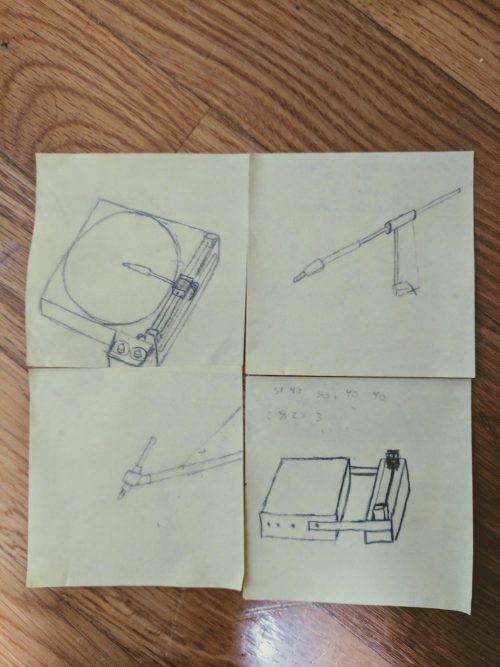

With an idea in mind and sketches drawn, Tucker first considered using an old record player as the base of his build. Having a rotating deck and arm already in place would have made building his project easier. However, he reports on Imgur:
I thought about that! I couldn’t find any at local thrift shops though. Apparently, they’ve become pretty popular…
We can’t disagree with him. Since his search was unsuccessful, Tucker ended up creating the CNC Wood Burner from scratch.
Taking into consideration the lumps and bumps of the wood he would be using as a ‘canvas’, Tucker decided to incorporate a pivot to allow the arm to move smoothly over the rough surface.
The code for the make is currently in ‘spaghetti form’, though Tucker is set to release it, as well as full instructions for the build, in the near future.

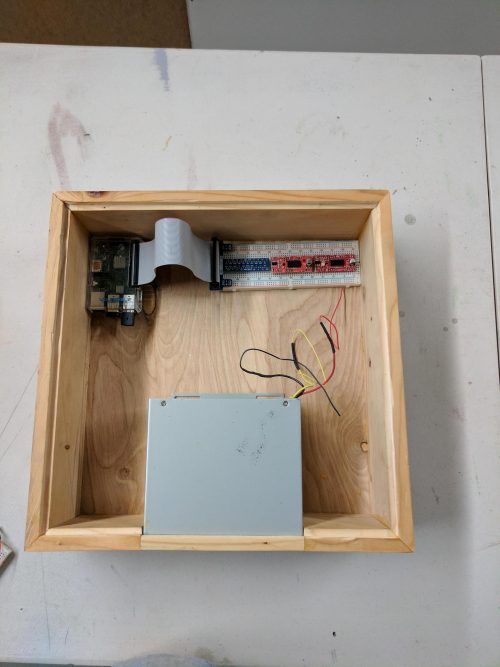

Tucker laser-cut the pieces for the wood burner’s box and gear out of birch and pine wood. As the motors require 12v power, the standard Raspberry Pi supply wasn’t going to be enough. Therefore, Tucker scavenged for old computer parts , and ended up rescuing a PSU (power supply unit). He then fitted the PSU and the Raspberry Pi within the box.
Next, he got to work building runners for the stepper motor controlling the position of the ‘pen thing’ that would scorch the image into the wood.

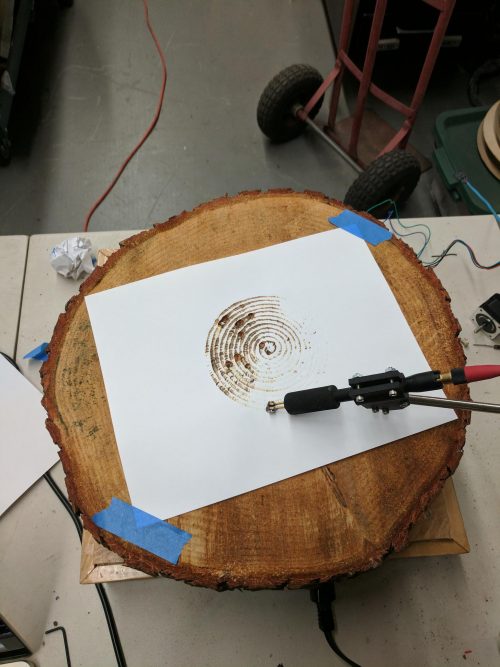

After a few test runs using paper, the CNC Wood Burner was good to go!

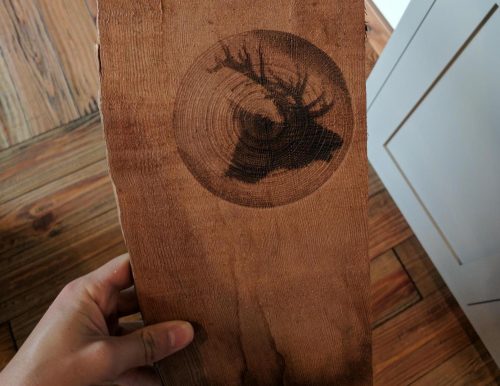

Tucker has used his CNC Wood Burner to create some wonderful pieces of art. The few examples he’s shared on Imgur have impressed us with their precision. We’re looking forward to seeing what else he is going to make with it!
Image replication using Raspberry Pis and stepper motors isn’t a new thing – though doing it using a wood-burning device may be! We’ve seen some great builds in which makers set up motors and a marker pen to create massive works of art. Are you one of those makers? Or have you been planning a build similar to Tucker’s project, possibly with a new twist?
Share your project with us below, whether it is complete or still merely sketches in a notebook. We’d love to see what you’re getting up to!
What’s with all the spinning GIF’s? I’m getting dizzy.
I’m working on a beerglass engraver. HW is a raspberry zero w for the high level stuff / interface / wireless interface, which has a serial connection to a board which is made by the company i work for ( dci electronics ). The only thing used on this board is the atmega168 controller. I could have used any arduino board for this, but i had this board around. That connects to 2 stepper motor drivers DRV8825 carrier boards, for x and y axis. Then i have an experiment pcb for power supply and a transistor which turns a dc motor on and off, for the actual engraving tool.
HW is finished. I’m coding for the atmega168 now to accept cnc commands, most commands i need are implemented.
Then i have a java program ( partly finished ), running on the raspberry, to accept text input and generating the cnc commands for text engraving. That’s the hard part :-)
So, hw setup looks a lot like tucker’s desing, but i have the atmega168 controller in between to meet the real time requirements. That’s not there in tuckers design, but i guess wood burning is a relative slow process without realtime requirements.
Mail me if you want a movie of it operating. No text yet, but straight lines are working. Nothing to publish yet, leave that until I’m finished ….
