Raspberry Pi High Quality Camera takes photos through thousands of straws

Adrian Hanft is our favourite kind of maker: weird. He’s also the guy who invented the Lego camera, 16 years ago. This time, he spent more than a year creating what he describes as “one of the strangest cameras you may ever hear about.”

What? Looks normal from here. Massive, but normal

What’s with all the straws?

OK, here’s why it’s weird: it takes photos with a Raspberry Pi High Quality Camera through a ‘lens’ of tiny drinking straws packed together. 23,248 straws, to be exact, are inside the wooden box-shaped bit of the machine above. The camera itself sits at the slim end of the black and white part. The Raspberry Pi, power bank, and controller all sit on top of the wooden box full of straws.

Here’s what an image of Yoda looks like, photographed through that many straws:

Mosaic, but make it techy

Ground glass lenses

The concept isn’t as easy as it may look. As you can see from the images below, if you hold up a load of straws, you can only see the light through a few of them. Adrian turned to older technology for a solution, taking a viewfinder from an old camera which had ground glass (which ‘collects’ light) on the surface.

Left: looking through straws at light with the naked eye
Right: the same straws viewed through a ground glass lens

Even though Adrian was completely new to both Raspberry Pi and Python, it only took him a week of evenings and weekends to code the software needed to control the Raspberry Pi High Quality Camera.

Long story short, on the left is the final camera, with all the prototypes queued up behind it

An original Nintendo controller runs the show and connects to the Raspberry Pi with a USB adapter. The buttons are mapped to the functions of Adrian’s software.

A super satisfying time-lapse of the straws being loaded

What does the Nintendo controller do?

In his original post, Adrian explains what all the buttons on the controller do in order to create images:

“The Start button launches a preview of what the camera is seeing. The A button takes a picture. The Up and Down buttons increase or decrease the exposure time by 1 second. The Select button launches a gallery of photos so I can see the last photo I took. The Right and Left buttons cycle between photos in the gallery. I am saving the B button for something else in the future. Maybe I will use it for uploading to Dropbox, I haven’t decided yet.”

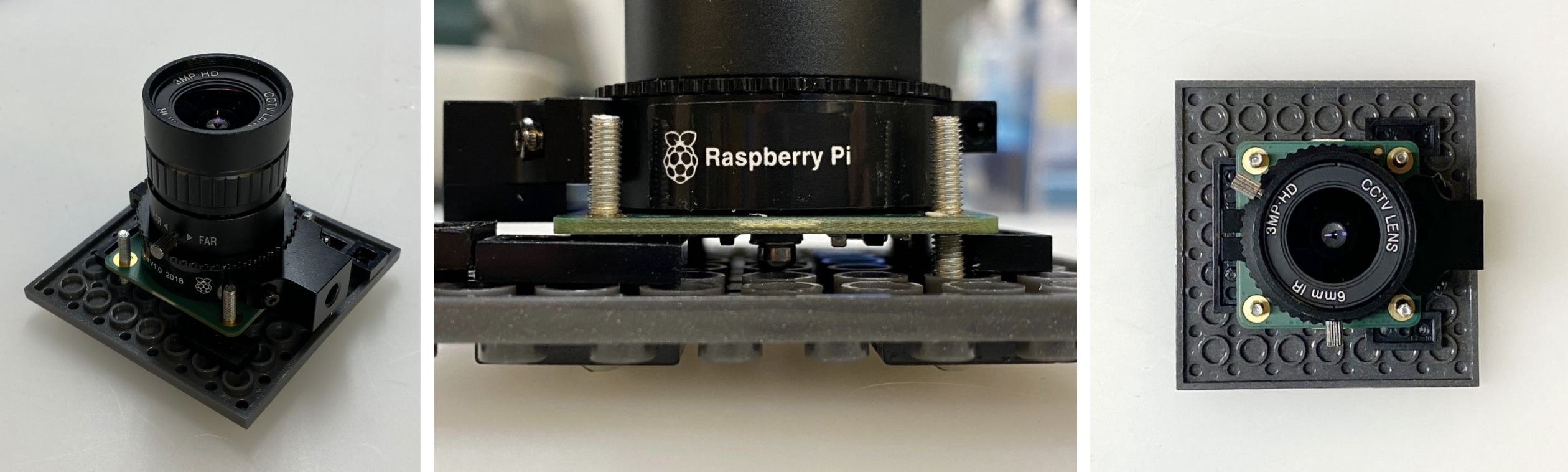

Adrian made a Lego mount for the Raspberry Pi camera

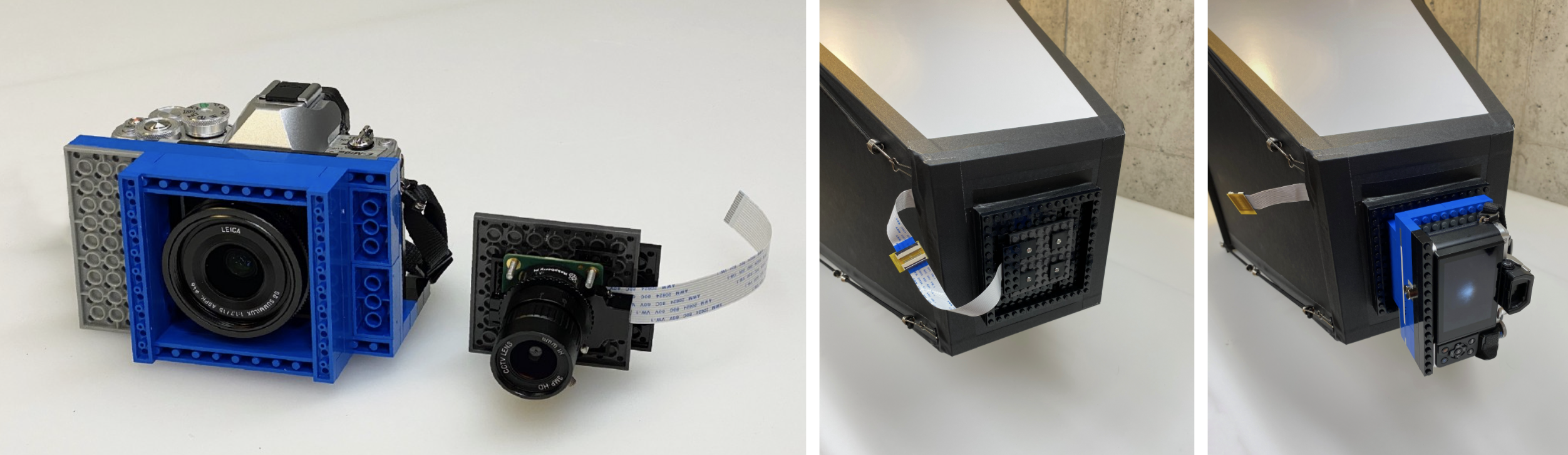

The Lego mount makes it easy to switch between cameras and lenses

A mobile phone serves as a wireless display so he can keep an eye on what’s going on. The phone communicates with the Raspberry Pi connected to the camera via a VPN app.

One of the prototypes in action

Follow Adrian on Instagram to keep up with all the photography captured using the final camera, as well as the prototypes that came before it.



It’s the same principle for a parallel hole collimator on a gamma camera detector used in nuclear medicine.

Ashley Whittaker avatar

I am just going to have to take your word for it on this one, Kent, but, sounds cool if true!

William Boyer avatar

I was just going to say that – well, not exactly that, but similar. Although this may be just a curiousity, in this case, for x-rays, lenses are hard to come by, so this would be a genuinely useful approach for an x-ray camera.

greg ben avatar

Many years ago I was involved in the manufacture of a series of chemically milled stainless steel plates that were stacked together to form an x-ray collimator for a camera that flew on a space shuttle mission. Each plate had an array of slots along with a hole at each corner for a machine screw to pass through.

Tony Abbey avatar

I worked on X-ray detectors at Leicester University Space Research Dept. Early X-ray satellites like Exosat used collimators originally with metal foils to create a honeycomb structure, but later, the flight model used microchannel plate technology. Glass rods consisting of soft glass in a lead glass tube were stacked, fused, stretched like Blackpool rock, chopped, stacked again etc. The final fused tubes were then chopped into plates and the soft glass etched out to leave an array of tiny tubes which acted like the raspberry pi camera but for unfocussable hard xrays. Deja vu?

Richard and Papazian avatar

Takes me back to the early 1970’s when I worked on Bairds System 70 Digital Gama Camera. the parallel hole collimator kept the back and side scatter from affecting the images.


No wait, a converging hole collimator ?

Des avatar

I really like this :-) But does it need to be the raspberry pi high quality camera? Surely the standard raspi camera or even a regular digital camera could be pressed into service?
Very impressive and very original. Big thumbs up.

james hobbs avatar

Imagine how many sea turtle lives could be impacted if this becomes a more popular form of photography

Kevin kerr avatar

Actually it’s a compound eye. Examples found as fossil trilobite as well as insects.

Jack avatar

so the same principle as fiber optics? Light is bent, or condensed by a flexible surface, or pipe.

Niall avatar

Nope. Optic fibres use total internal reflection inside the fibres. Here you’re only getting the parallel light that comes directly through the tubes. The ground glass is functioning as a focussing screen for the light coming through the straws, and the camera is taking a photo of the resulting projected image.

CooliPi avatar

Exactly. Side effect being that it acts as if the camera had infinite focal length. The objects it sees aren’t therefore skewed like in a normal camera/lens that actually sees every pixel with a different angle.
A higher resolution version of this could be made out of fiber optic cables – only the cores. These would have to have its ends perfectly smoothed at right angle, though.

Matt Heck avatar

Interestingly, Kristian Akseth has used something similar to make a wind tunnel with pure laminar flow for testing. He bought dozens of packs of restaurant straws– which come as blocks, tightly wrapped in brown paper– used a band saw to take the ends of the entire block off, and basically built a wall out of a few layers of them. He stuck a big fan in front, and the air that came out the other end had almost no turbulence. A little smoke in front, and presto, perfect wing visualizations.

To some degree, this kind of imaging can do something similar, eliminating off-axis light. Should be very interesting to play with.

Peter N avatar

How it Works (or similar) also did similar with water to get a laminar flow and make some dancing fountains, I think that’s also how the big Las Vegas ones work.

JBeale avatar

Interesting look! Maybe it’s part of the charm of the final image… but (I suppose due to ground-glass properties) it has a big brightness peak at center and vignetting around the edges. That could, I presume be reduced in post, if you wanted to.

Neil avatar

That’s a hooooge amount of effort to convert a high-res camera into a low res camera. So: It has to be capital-A Art, right?

Richard Collins avatar

Could have been done just for fun.

STGuru avatar

I love the resulting photos…though I hope it was 23,248 paper straws.

Nicholas Barnes avatar

If I’m reading this right, there’s a plate of normal glass, then the straws and then a plate of ground glass. The straws work like pinhole cameras and ‘project’ the image onto the ground glass plate. The camera then takes a photo of the ground glass plate.

Nick Roberts avatar

Another element for an optical computer CPU if it isn’t already ?

Nick Roberts avatar

Pure optical TV sans the need for optical to electronic conversion.

Paul avatar

Looks great – shame they weren’t paper straws though :-(

Reader avatar

The post would have been more interesting if it had actually answered the question “What’s with all the straws?”, instead of just mentioning how many of them there are.
