A home-brew Pi kit for home brewing

While the rest of us are forced to leave the house to obtain a tasty brew, beer master Christoper Aedo has incorporated a Raspberry Pi into his home brewing system for ultimate ‘sit-back-and-relax’ home-brew home brew.

homebrew home brew Raspberry Pi

KEG! KEG! KEG! KEG!

I drink and I know things

Having brewed his own beer for several years, Christopher was no novice in the pursuit of creating the perfect pint*. He was already brewing 10 gallons at a time when he decided to go all electric with a Raspberry Pi. Inspiration struck when he stumbled upon the StrangeBrew Elsinore Java server, and he went to work planning the best setup for the job:

Before I could talk myself out of the project, I decided to start buying parts. My basic design was a Hot Liquor Tank (HLT) and boil kettle with 5500W heating elements in them, plus a mash tun with a false bottom. I would use a pump to recirculate the mash through a 50 foot stainless coil in the HLT (a “heat exchanger recirculating mash system”, known as HERMS). I would need a second pump to circulate the water in the HLT, and to help with transferring water to the mash tun. All of the electrical components would be controlled with a Raspberry Pi.

Home-brew hardware setup

First, he set up the electrical side of his home-brew system using The Electric Brewing Company‘s walkthrough, swapping out the 12V solid-state relays for ones that manage the 3V needed by the Pi. Aedo then implemented the temperature sensors and controls of these relays. He used Hilitchi DS18B20 Waterproof Temperature Sensors connected to a 1-Wire bus and learned how to manage the relays in this tutorial.

Christopher wanted to be able to move his system around his property. Therefore, he squeezed all the electrical components of the build into a waterproof project box. For cooling purposes, he integrated copper shims and heat sinks.

homebrew home brew raspberry pi

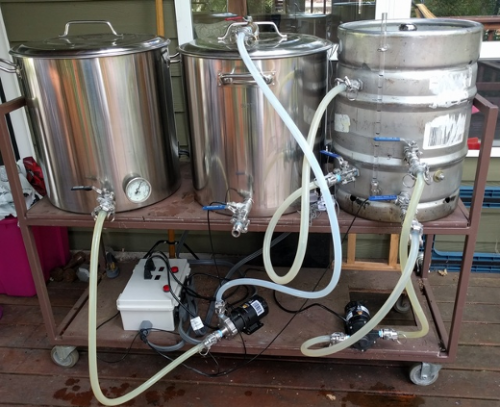

Among the wires, wires, and more wires sits a Raspberry Pi, bottom left.

A brew-tiful build

With the hardware sorted, he took on the project’s software next. Although he had been inspired by it, Christopher decided to move away from the StrangeBrew Elsinore project in favour of the Python-based CraftBeerPi by active repo maintainer Manuel Fritsch.

homebrew home brew raspberry pi

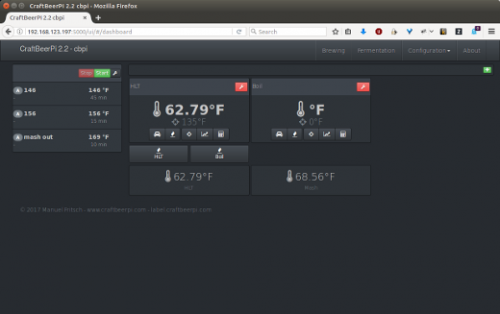

The CraftBeerPi dashboard

This package allowed him to configure his chosen GPIO pins and set up the appropriate sensors. In fact, the setup process was so easy that Christoper also implemented a secondhand fridge as a fermentation chamber.

Duff Beer for me, Duff Beer for you…

In his recently released article on opensource.com, Aedo goes into far more detail. So if you want to create your own brewing kit, it offers all the info you need to get going.

Christoper attributes a lot of his build to the Hosehead, Electric Brewery, and CraftBeerPi projects. Using their resources and those of StrangeBrew Elsinore, any home brewer can control at least part of their system via a Raspberry Pi. Moreover, they can also keep track of their brewery stock levels via the wonderfully named Kegerface display.

We love seeing projects like this that take inspiration from others and build on them. We also love beer.

How about you? Have you created any sort of beer brewing system, from scratch or with the help of an existing project? Then make sure to share it with us in the comments below.

Duff man homebrew



*Did you know the British pint is larger than the American pint?
