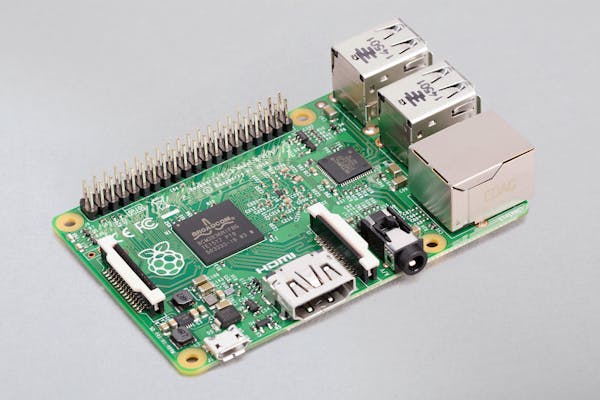

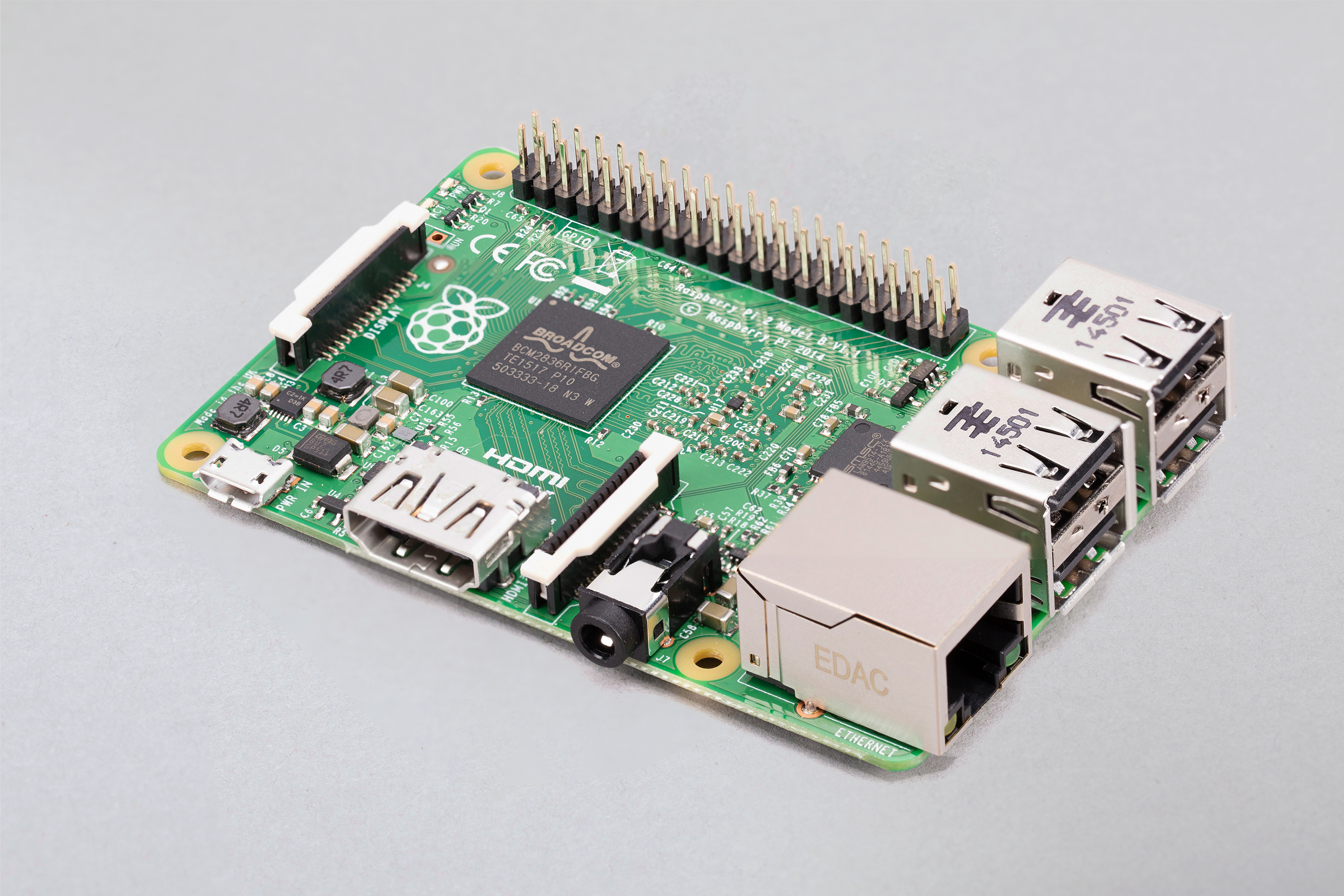

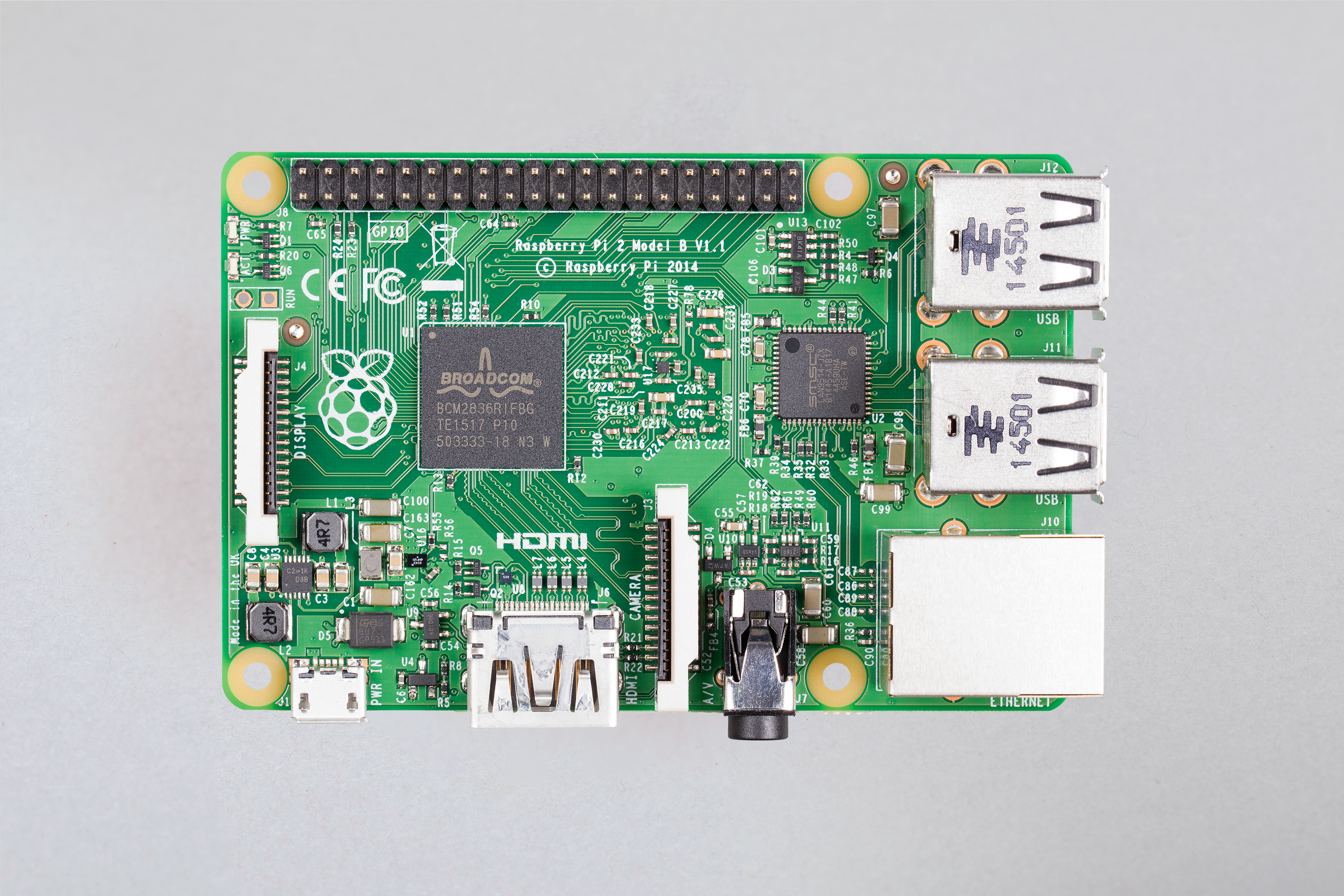

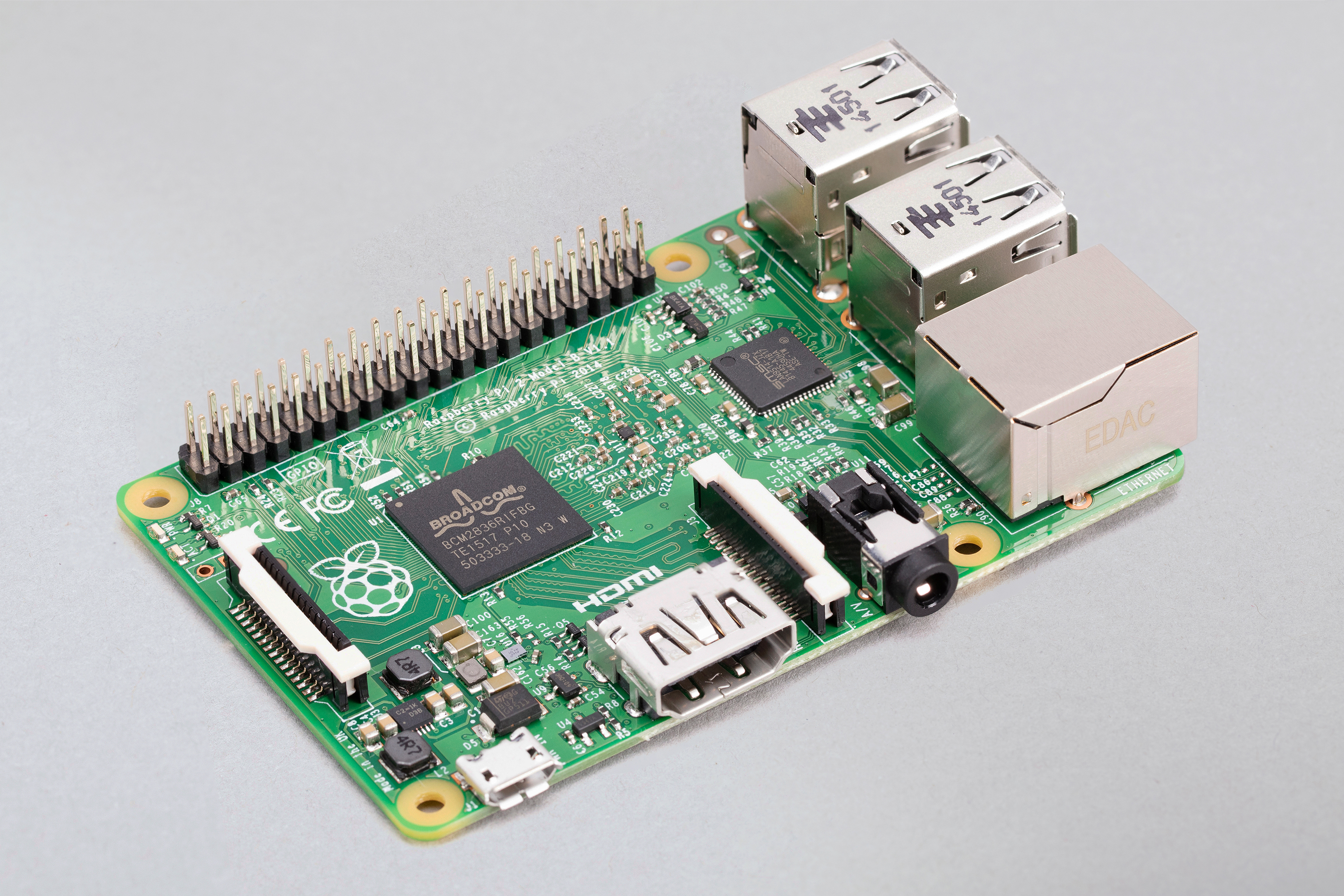

Raspberry Pi 2 Model B
The Raspberry Pi 2 Model B is the second-generation Raspberry Pi. It replaced Raspberry Pi 1 Model B+ in February 2015.
Specification
- 900MHz Arm Cortex-A7 quad-core processor (revision 1.1)
- 900MHz Arm Cortex-A53 quad-core 64-bit processor (revisions 1.2 and 1.3)
- 1GB RAM
- 100 Base Ethernet
- 4 USB ports
- 40 GPIO pins
- Full HDMI® port
- Combined 3.5mm audio jack and composite video
- Camera interface (CSI)
- Display interface (DSI)
- Micro SD card slot
- VideoCore IV 3D graphics core
Obsolescence statement
Raspberry Pi 2 revisions 1.1 and 1.2 have now reached end-of-life, with final shipments scheduled for June 2026.
For designs requiring Raspberry Pi 2, we recommend revision 1.3, which has the same electronic and mechanical specifications as revisions 1.1 and 1.2 but with the updated Broadcom 2837B0 processor.
Compliance
The Raspberry Pi 2 Model B has undergone extensive compliance testing, and meets the following European standards:
- Electromagnetic Compatibility Directive (EMC) 2014/30/EU
- Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
View and download global compliance certificates for Raspberry Pi products.
The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
