Most excellent maker Blinry decided no longer to let their lack of a sense of direction deter them from adventures, and built a Raspberry Pi Pico-powered belt to guide them north.

Affordable (and emo-friendly) tech

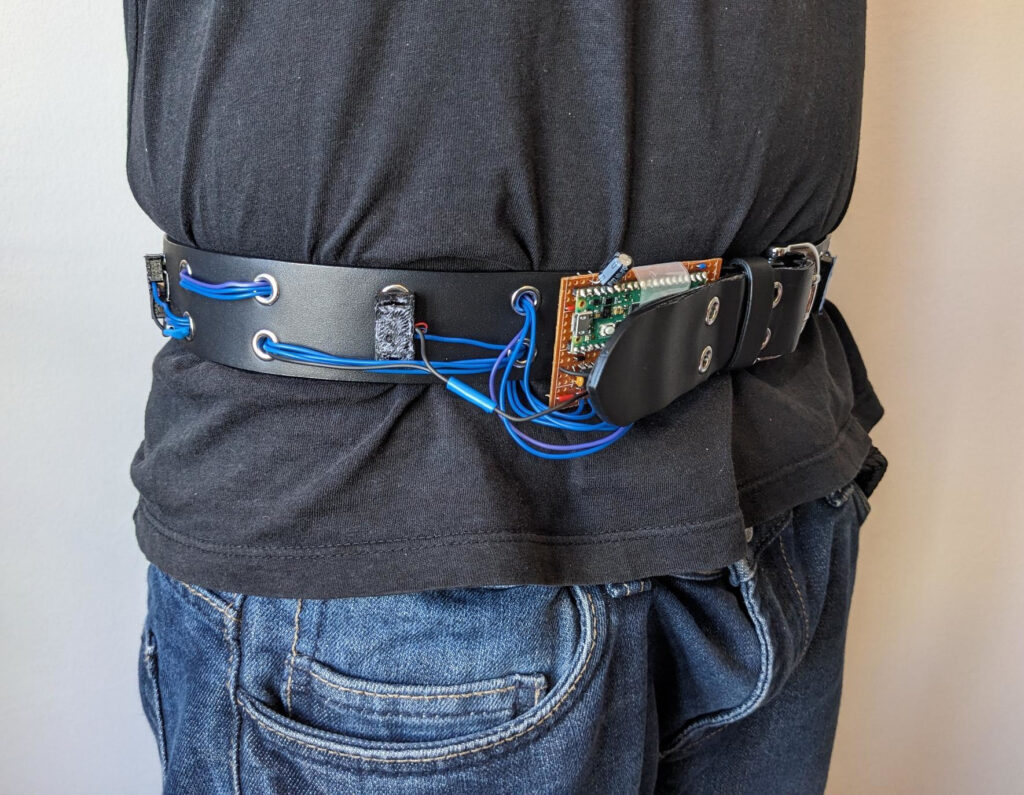

We are super into affordable technology around here so were thrilled to learn that the parts used in Blinry’s belted compass cost just €15 (around £13). It’s up to you how fancy you want to go with the belt itself, but you definitely need one with many holes for the wires. It’s also a good idea to have those holes trimmed with a hardy material, like the one shown in this build, so your wires don’t rub away at the belt as you navigate the landscape. My fashion sense was cultivated in the early 2000s, which means I am fully onboard with Blinry’s black leather and metal-trimmed eyelet choice of belt. Emo 4 lyf.

If you choose something without eyelets, you’ll have to think about how you mount the electronics to the belt.

How does it work?

The project is simplicity in motion. Blinry’s belt has a few vibration motors attached to it, and these tell the wearer which way north is. A Raspberry Pi Pico W controls the motors. It in turn receives its commands from a smartphone via USB.

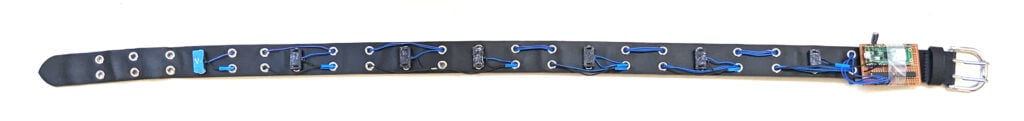

The smartphone is in charge of detecting where north is, removing the need for an extra magnetic sensor. That same smartphone also powers the entire setup, so you don’t need an additional battery. Blinry printed individual enclosures to house each motor and clip them onto the belt.

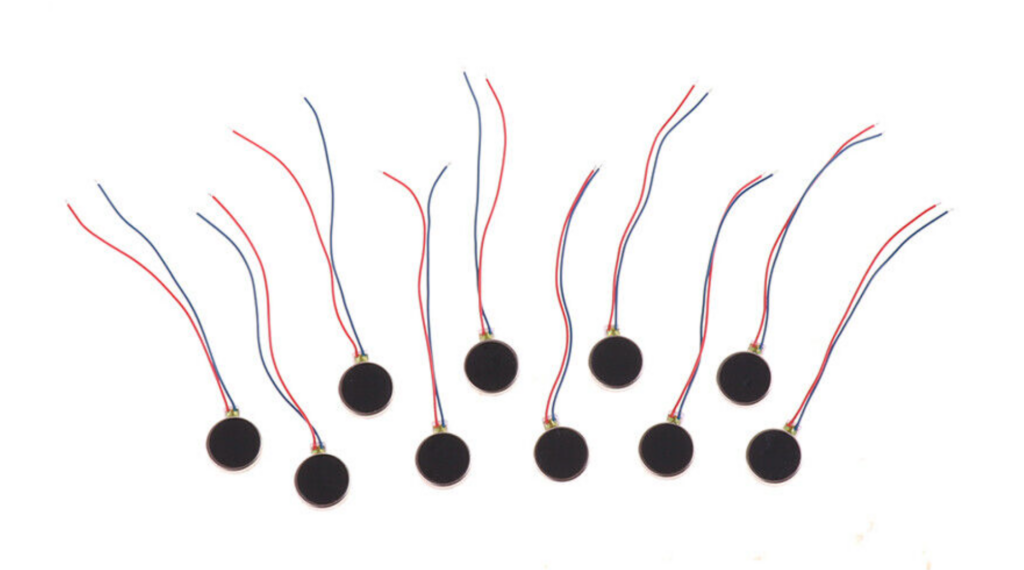

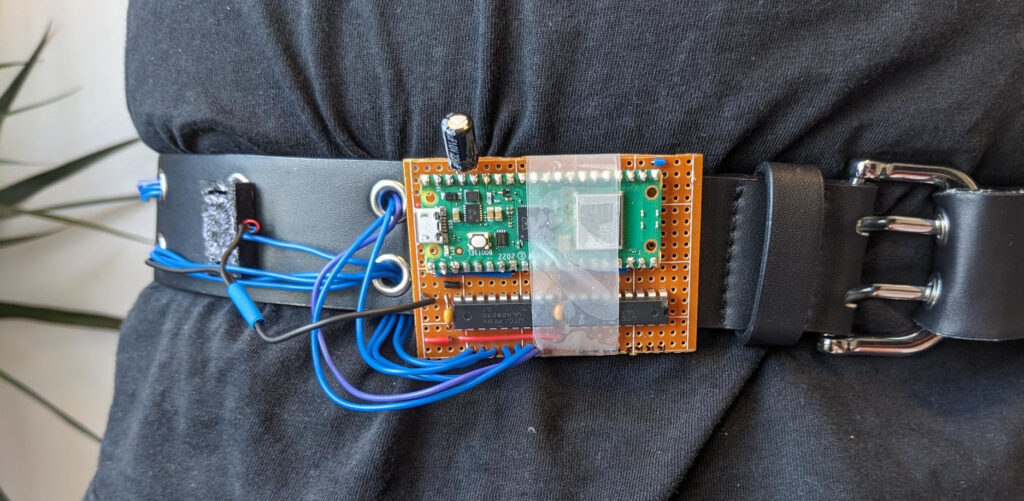

The motors here are eight coin vibration motors (like those pictured below). The Raspberry Pi Pico can’t support the current for all of them, so Blinry commandeered a transistor array chip called the ULN2803a.

Coding complications

There was a bit of a hoo-ha getting the smartphone to talk to the Pico via USB. You can read all about this in Blinry’s project post. The MicroPython on the Pico itself is pretty straightforward, though. In a nutshell:

“The firmware is pretty simple: It reads numbers between 0 and 1 from the serial connection via the USB cable connected to the Android phone, and then activates the matching motor. 0 means “at the front of the human”, 0.25 is right, 0.5 is back, 0.75 is left.”

blinry.org

While the tech sounds simple enough, I do not rate my general situational awareness enough to trust that I would walk in the direction of a vibrating motor attached to my belt. One thousand percent would end up in a ravine roughly eight miles from my intended destination. [Particularly impressive for someone who lives in the fens — Ed.]

Wireless upgrade

Blinry created an entire app to control this compass belt via a smartphone. They hope to upgrade their creation to get rid of the need for a USB connection to the smartphone, instead using Raspberry Pi Pico W’s Bluetooth capabilities.
